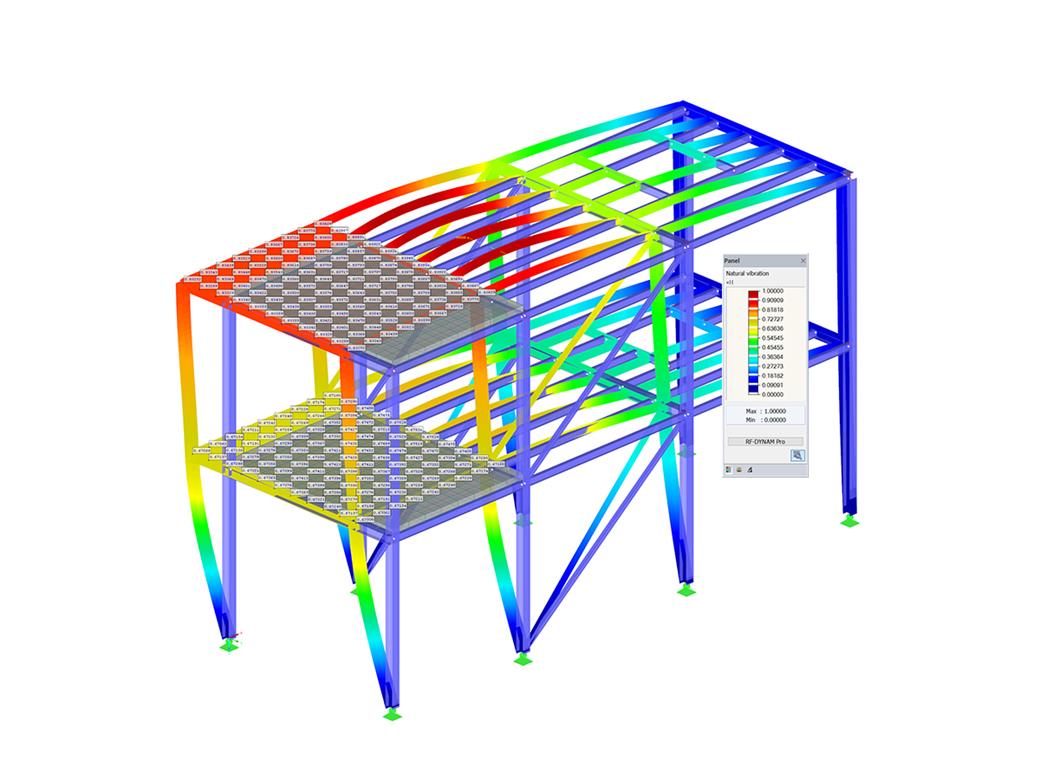

RF-/DYNAM Pro - Equivalent Loads | Features

Product Feature

  • Response spectra according to various standards
  • The following standards are implemented:
    •  EN 1998-1:2010 (European Union)
    •  DTR B C 2-48 (Algeria)
    •  DTR RPA99 (Algeria)
    •  CIRSOC 103 (Argentina)
    • Australia AS1170.4 (Australia)
    •  ÖNORM B 4015:2007-02 (Austria)
    • Canada NBC 2015 (Canada)
    •  NCh 433 1996 (Chile)
    • China GB 50011-2001 (China)
    • China GB 50011-2010 (China)
    •  NSR - 10 (Colombia)
    •  DIN 4149:1981-04 (Germany)
    •  DIN 4149:2005-04 (Germany)
    •  IS 1893:2002 (India)
    •  NTC 2008 (Italy)
    • Mexico CFE Sismo 08 (Mexico)
    •  SBC 301:2007 (Saudi Arabia)
    •  SANS 10160‑4 2010 (South Africa)
    •  NCSE-02 (Spain)
    •  SIA 261/1:2013 (Switzerland)
    •  SIA 261/1:2014 (Switzerland)
    •  O.G. 23089 + O.G. 23390 (Turkey)
    •  IBC 2000 (USA)
    •  IBC 2009-ASCE/SEI 7-05 (USA)
    •  IBC 2012/15 - ASCE/SEI 7-10 (USA)
  • The following National Annexes are available for EN 1998‑1:
    •  NA to BS EN 1998-1:2004:2008 (United Kingdom)
    •  ÖNORM EN 1991-1-1:2011-09 (Austria)
    • Belgium NBN - ENV 1998-1-1: 2002 NAD-E/N/F (Belgium)
    • Cyprus CYS EN 1998-1/NA:2004 (Cyprus)
    •  CSN EN 1998-1/NA:2007 (Czech Republic)
    •  NF EN 1998-1-1/NA:2014-09 (France)
    •  DIN EN 1998-1/NA:2011-01 (Germany)
    •  UNI-EN 1991-1-1/NA:2007 (Italy)
    •  NS-EN 1998-1:2004+A1:2013/NA:2014 (Norway)
    •  NP EN 1998-1/NA:2009 (Portugal)
    •  SR EN 1998-1/NA:2004 (Romania)
    •  STN EN 1998-1/NA:2008 (Slovakia)
    •  SIST EN 1998-1:2005/A101:2006 (Slovenia)
  • Input of user-defined response spectra
  • Direction-relative response spectra approach
  • Manual or automatic selection of the relevant mode shapes for response spectra (5 % rule from EC 8 applicable)
  • Generated equivalent static loads exported into load cases separately for each mode and direction
  • Result combinations by modal superimposition (SRSS rule) and by direction superimposition (SRSS or CQC rule)
  • Signed results based on the dominant mode shape can be generated
