Residential Timber Buildings in Strasbourg, France

Structures Analysed with Dlubal Software

  • Customer Project

Customer Project

Modern design methods and fabrication techniques of CLT panels allow for easier design and construction of high‑rise timber buildings.“Îlot bois de Strasbourg” is one of the first CLT building projects in France to exceed 98 ft in height. This building complex, consisting of three high‑rise buildings, provides commercial space on the ground floor and 146 residential units on the upper floors. The entire structure has a total area of 100,104 ft².

Structural Analysis Ingénierie Bois
Bischheim, France
www.ingenieriebois.fr
General Contractor and Concrete Design Eiffage Construction
Oberhausbergen, France
www.eiffageconstruction.com
Architecture ASP Architecture
Saint-Dié-des-Vosges, France
Investor Bouygues Immobilier
Strasbourg, France
www.bouygues-immobilier.com

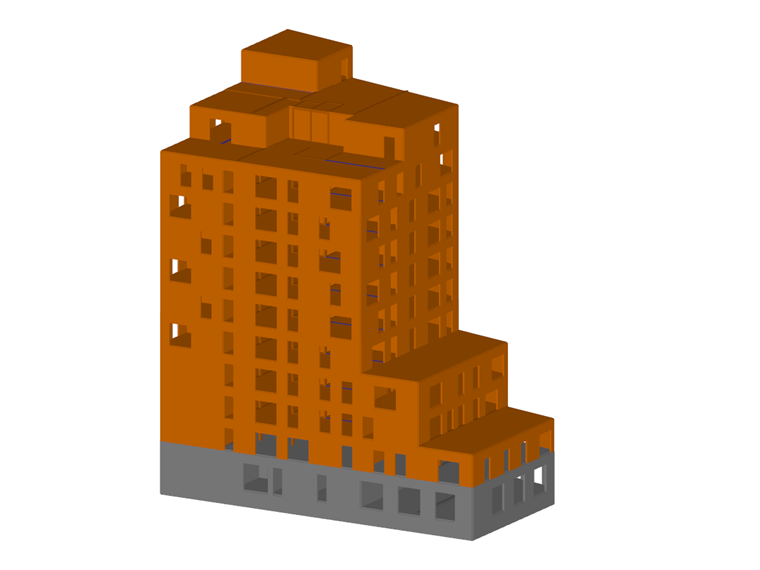

Model

Structure and Design

The structural concept of the building with 11 aboveground floors is based on using several types of CLT panels, depending on the floor. That is, the higher the floor, the lower the panel thickness. The cross‑laminated timber walls ensure the stability of the building.

Due to the diaphragm effect of the floors, the horizontal forces caused by seismic activity and wind are transferred by the vertical supporting members to the foundations.

The floors are supported by a glulam column-beam system that does not contribute to the stability of the building. Some of the timber downstand beams are replaced by steel beams. The bottom reinforced concrete part of the structure (ground floor) is very important, as it absorbs the vertical and horizontal loads from the upper floors and transfers them to the pile heads.

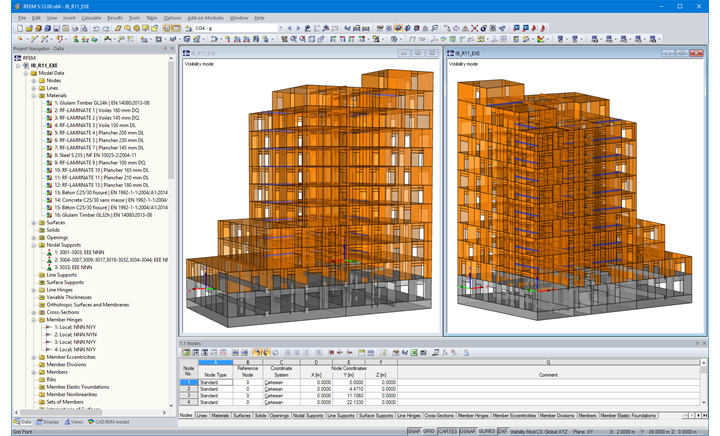

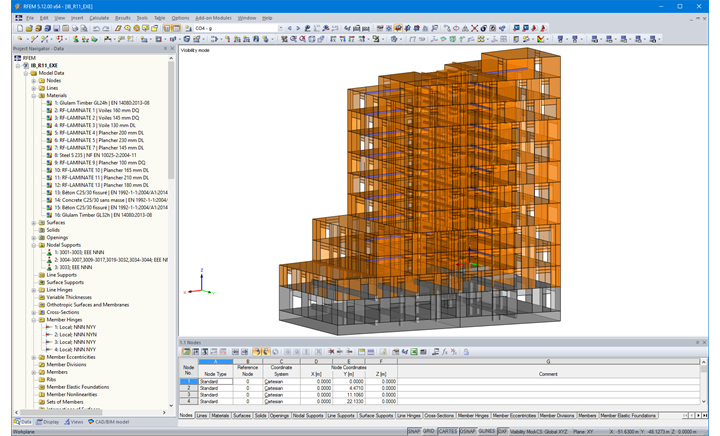

For the design of the CLT panels and for seismic analysis, structural analysis software RFEM was used.
