The Table Values tab is available if you have selected the Time History Analysis ❘ Time Diagram analysis type.
Times & Multipliers

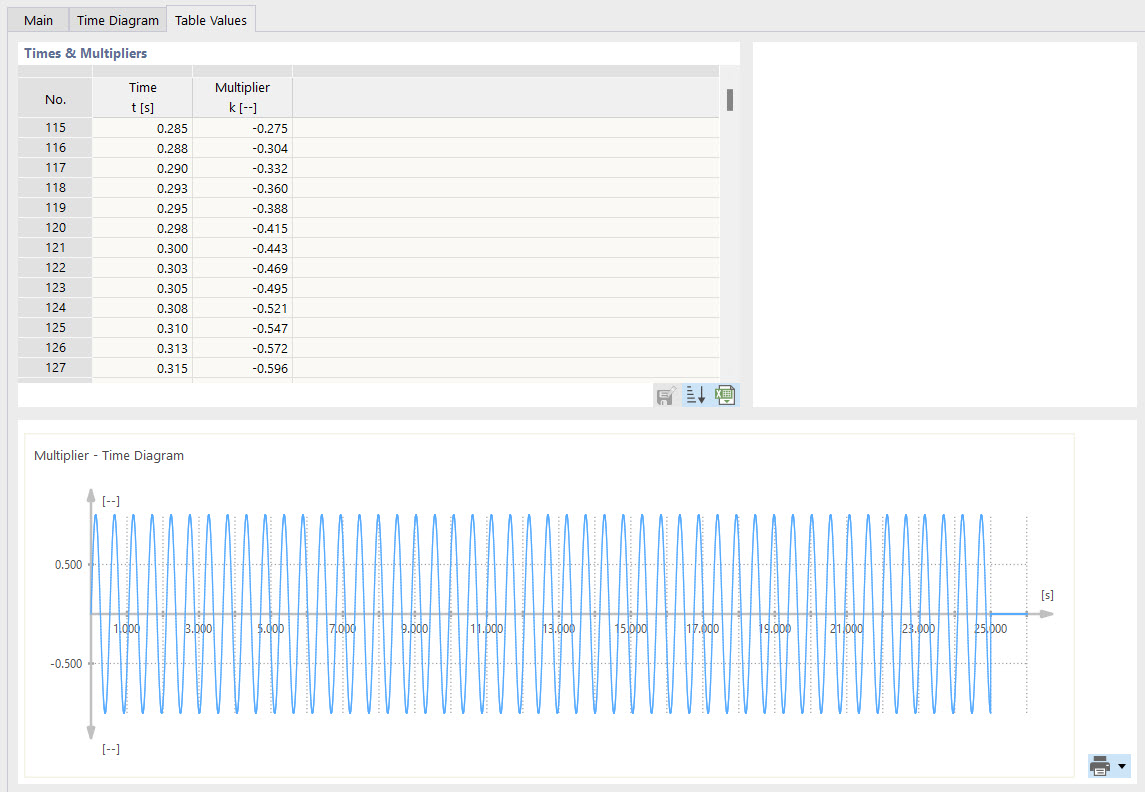

This section shows the diagram selected in the Time Diagram tab in a tabular form. For each time step, you can see the corresponding "Multiplier" – a factor of the load value.
Click the
button to export the table values to Excel.
Graph
The lower section shows the time diagram in a graphical form. When selecting a row in the table, the corresponding location is highlighted in the diagram. Conversely, you can also click a location in the graph to set the corresponding table values above.
