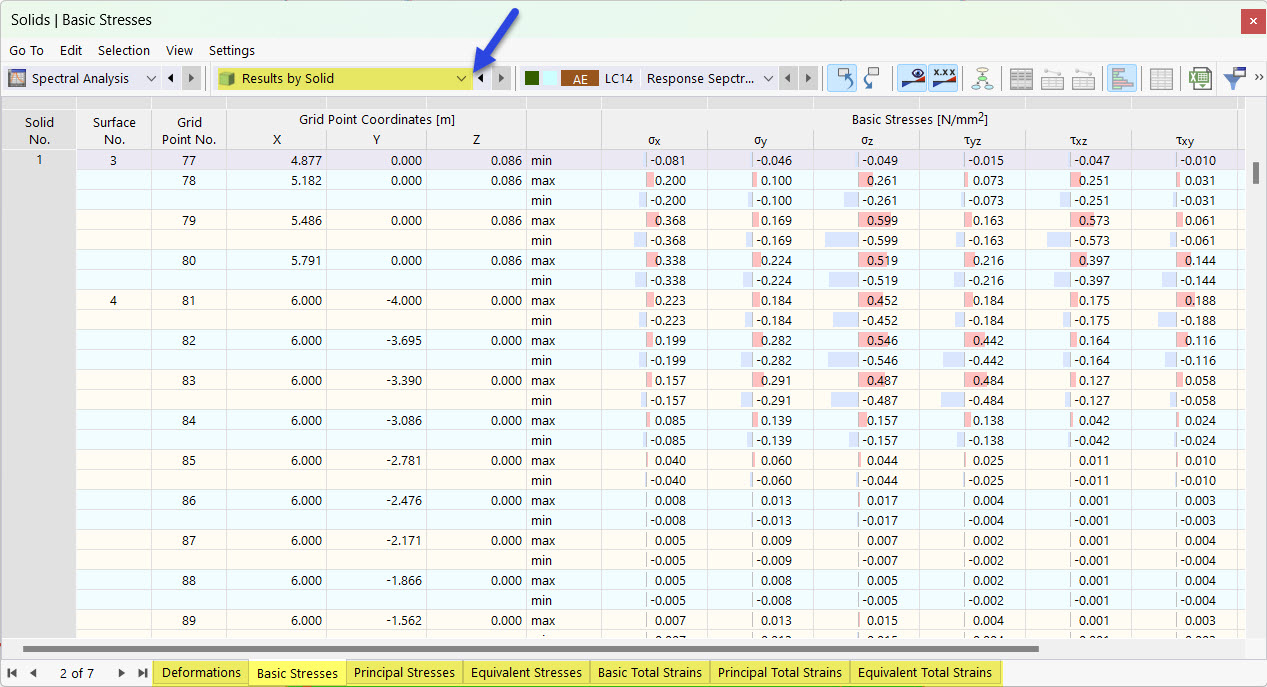

In the table result category Results by volume , the numerical results are listed, which are displayed in the grid points of the boundary surfaces of the individual [[ #/de/downloads-und-infos/documents/online-handbooks/rfem-6/000042 solids {%\} exist. The results are sorted by volume number.
Deformations
Die Verformungen der Volumenkörper-Begrenzungsflächen werden auf die globalen Achsen bezogen ausgegeben. You can control the graphic display via the navigator category 'Global deformations' (see picture # extbookmark manual|image030131|Results of the spectral analysis #). The table lists the corresponding results in the 'Deformations' tab.
Stress
Die Spannungen der Volumenkörper-Begrenzungsflächen sind in drei Kategorien unterteilt:
- Basic Stresses: stresses in the direction of the surface axes
- Principal Stresses: stresses in the direction of the principal axes
- Equivalent Stresses: Combination of principal stresses according to von Mises, Tresca, Rankine or Bach
In the navigator category 'Solids' → ' Stresses ', specify the result type for the graphic display. The table lists the stresses of the solid surfaces in the tabs 'Basic Stresses ',' Principal Stresses ', and ' Equivalent Stresses '.
Strains
Die Verzerrungen der Volumenkörper-Begrenzungsflächen sind in drei Kategorien unterteilt:
- Basic Total Strains: strains in the direction of the surface axes
- Principal Total Strains: strains in the direction of the principal axes
- Equivalent Total Strains: Combination of the total strains according to von Mises, Tresca, Rankine or Bach
In the navigator category 'Solids' → ' Distortions ', specify the result type for the graphic display. The table lists the solid surface strains in the 'Base Total Strains ',' Main Total Strains ', and ' Comparative Total Strains '.
