Results by Node

In the table result category Results, the results of the pushover analysis are listed, which are available at the node . The results in the two tabs are sorted by node number.

Global deformations

You can display the nodal deformations graphically via the navigator category 'Global Deformations' (see picture Results of the pushover analysis ). In the table register 'Global deformations' the deformations of the nodes are displayed in numerical form.

01 Global Nodal Deformations in Pushover Analysis Table

The absolute total displacement | u |, the displacements u_X, u_Y and u_Z as well as the rotations φ_X, φ_Y and φ_Z are given.

Support Forces

The register 'Support Forces' lists the forces and moments that are introduced into each nodal support.

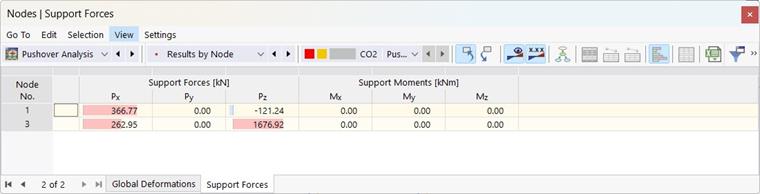

02 Support Forces in Pushover Analysis Table
