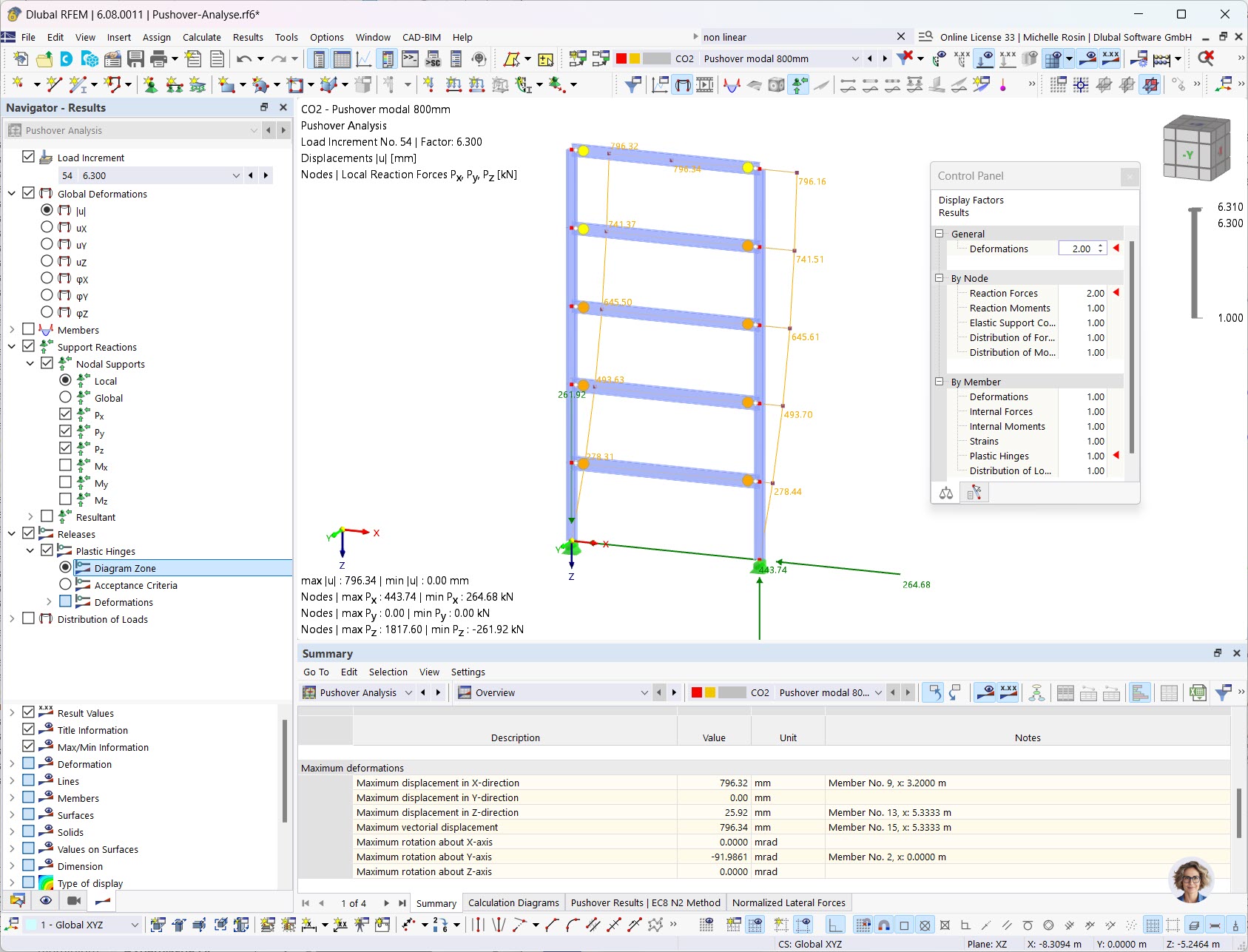

After the successful calculation, the results of a pushover load combination are displayed: In the work window you can see the global deformations, in the table you can see the pushover analysis parameters as well as the deformations, support forces and internal forces of the nodes and members. The results of the pushover analysis are thus fully integrated into the program interface of RFEM or RSTAB.
Work Window

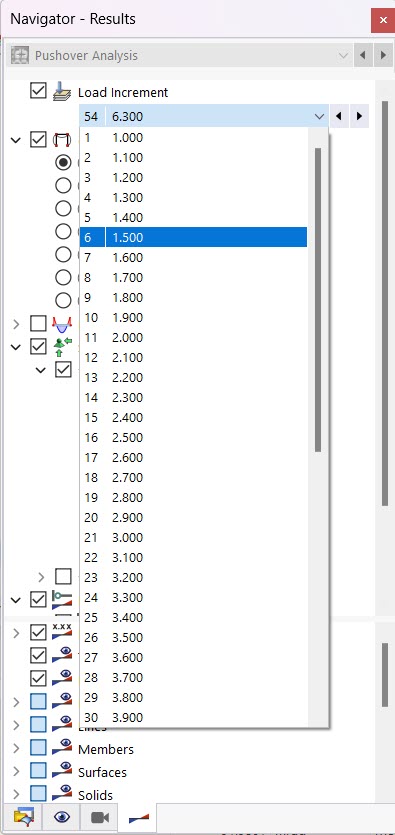

At the top of the ' Navigator - Results ', select the load level to be used for graphing the results. You can also use the
and
buttons to switch between the entries.
For the graphic display of the results, all result types that are also available for a static load case are available in the Navigator. Depending on the model type, these are, for example, the global deformations, the member and surface internal forces, and the support reactions. The result types of the model objects are described in chapter Results of the RFEM manual. Furthermore, in the navigator category ' Approvals ', you can define which result criteria are displayed graphically for Plastic Joints .

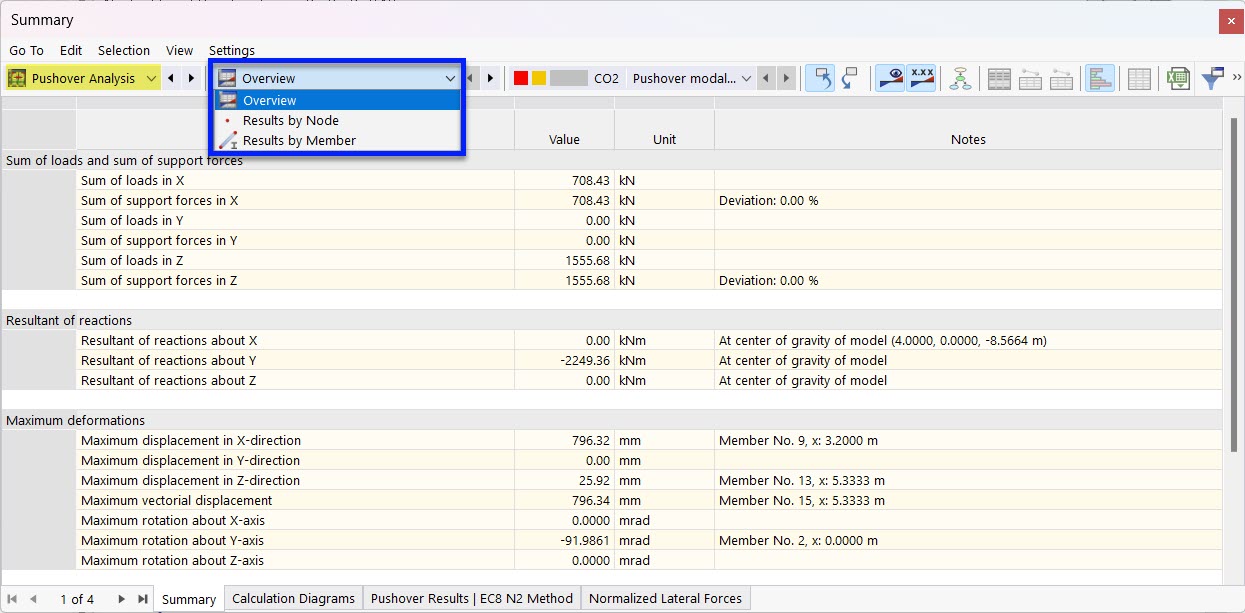

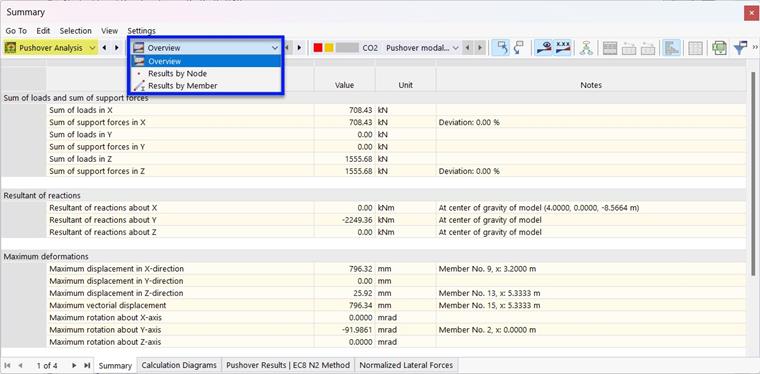

The dynamic analysis results tables are automatically displayed when you view the results of the pushover load combination. You can use the categories and subcategories to control the display of the results in the table (see chapter tables of the RFEM Manual). Various sub-categories are available for the pushover analysis. They are presented in the following chapters.
The options for evaluating results are described in general in the chapter Result evaluation of the RFEM manual.
Units and Decimal Places
You can adjust the units and decimal places as described in chapter Units and Decimal Places . Since it is primarily about deformations, internal forces, stresses and support forces, the units in chapter [[#/de/downloads-und-infos/documents/online-handbooks/rfem-6/000014 change units {%\} of the RFEM manual described parameters of the category 'Static Analysis' relevant.
