The dynamic analysis add-ons are fully integrated in RFEM or RSTAB. Therefore, you can use all the options known from the main program to document the graphic results of the dynamic analysis. The general procedure for preparing graphics for printing is described in chapter Graphics of the RFEM manual.
You can print out the current view directly using the print function or transfer it to the printout report.

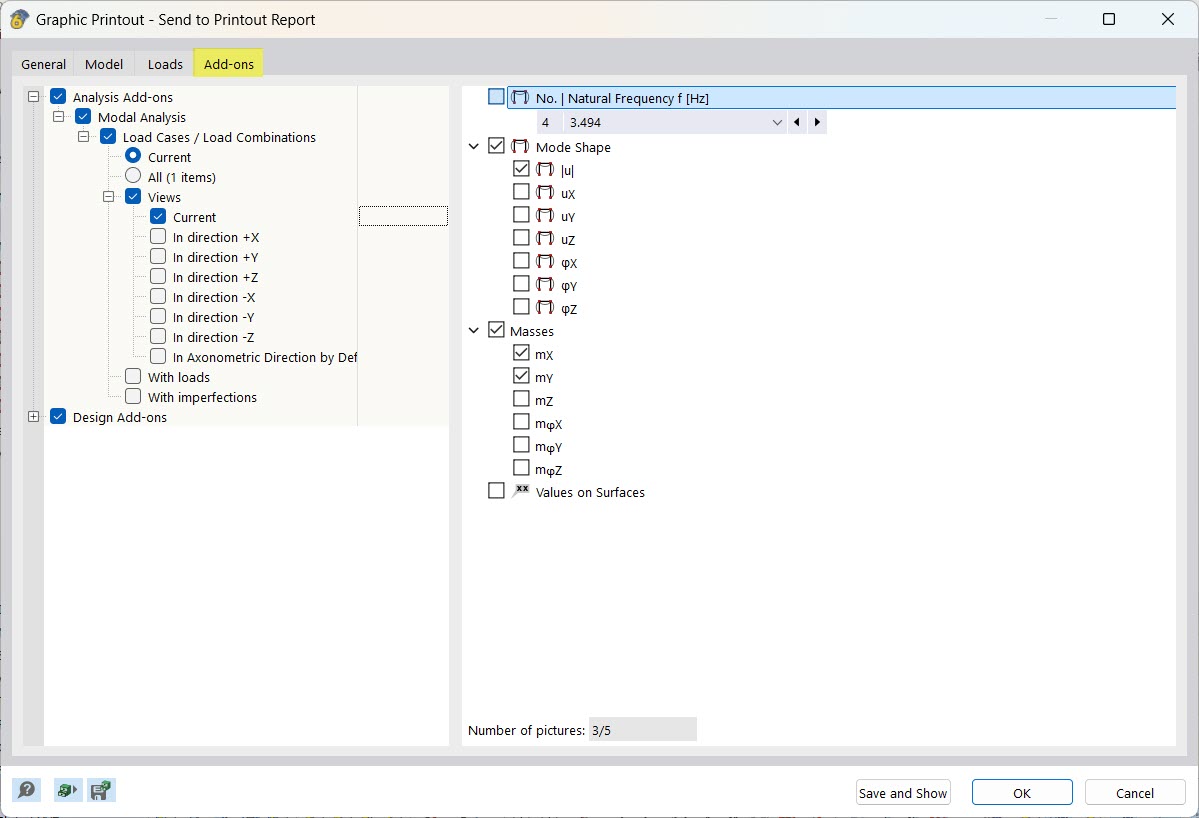

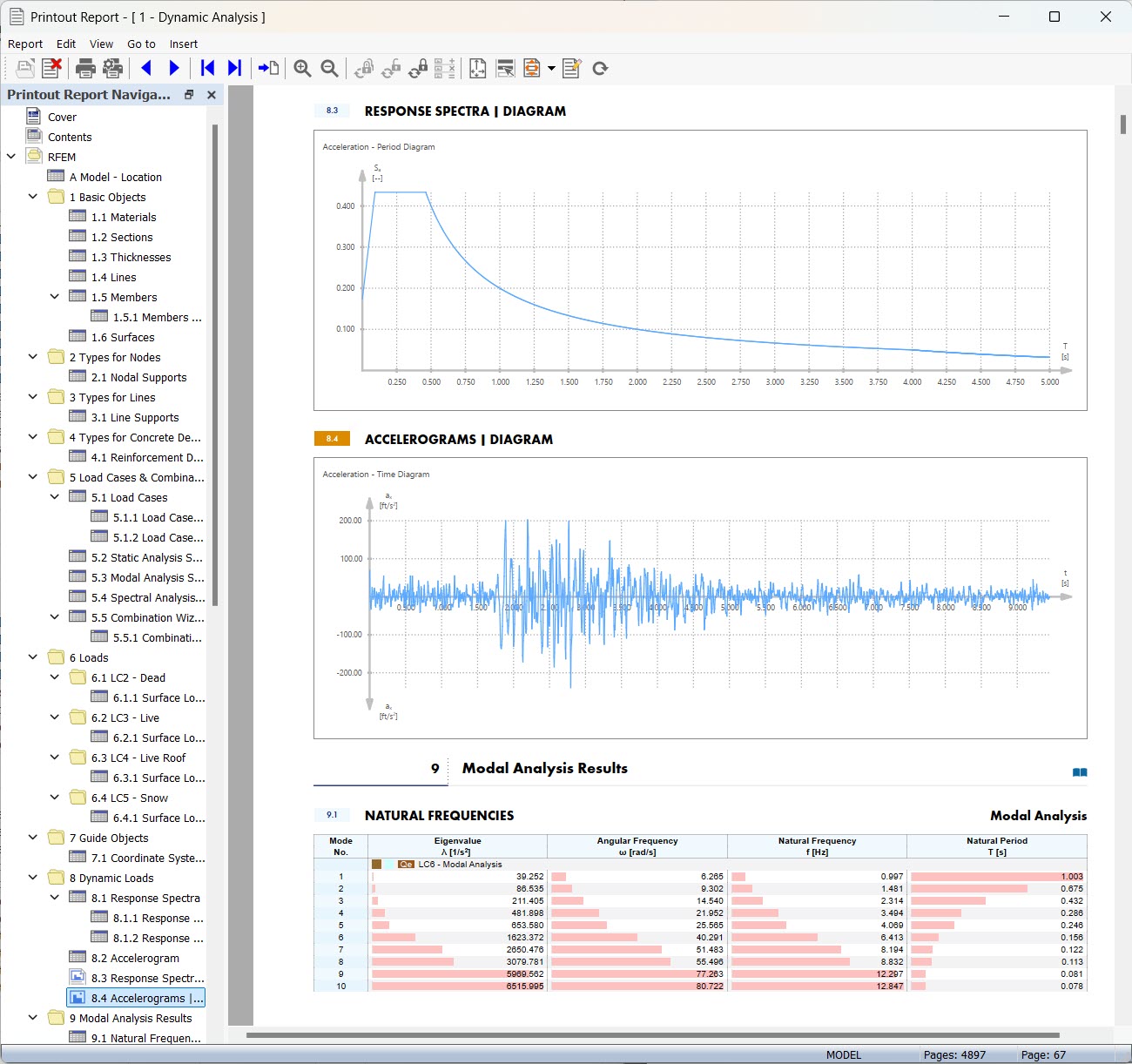

When you select multiple graphics in the printout report, you can also select all available results of the modal analysis in the Add-ons tab. The graphics are sorted into the results folder for the modal analysis in the printout report.

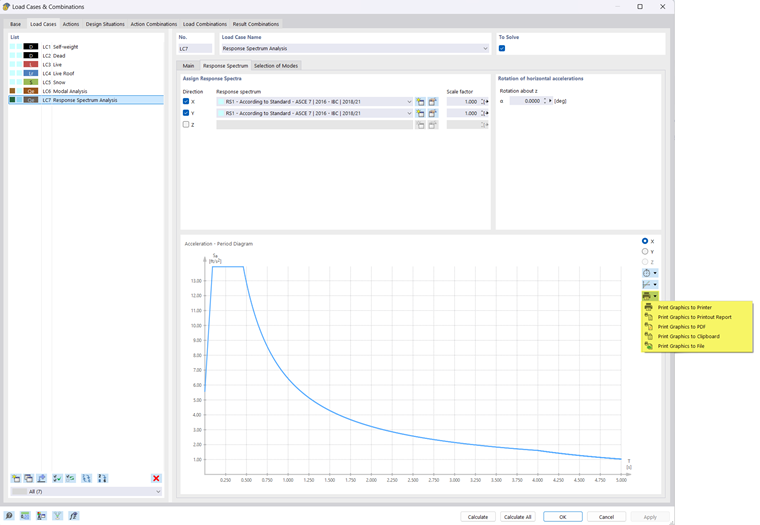

Graphic printing is particularly useful for # extbookmark manual|diagramPrint|Diagrams # on. In the corresponding dialogs, various options are available via the
button to print the current diagram.
