In the table result category Results by node (see picture Subcategory for modal analysis results ) the numerical results of the mode shapes are listed with the associated normalized displacements and rotations that are available at each Node. The results are sorted by node number in the 'Eigenforms tab'.
The normalized displacements and rotations are dimensionless due to the scaling process.

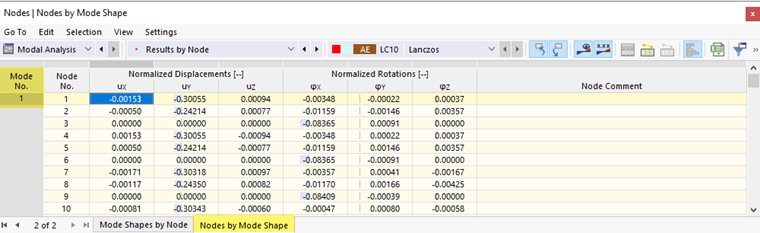

In the register 'Nodes by eigenmode' the results of the nodes are arranged according to eigenmodes.
