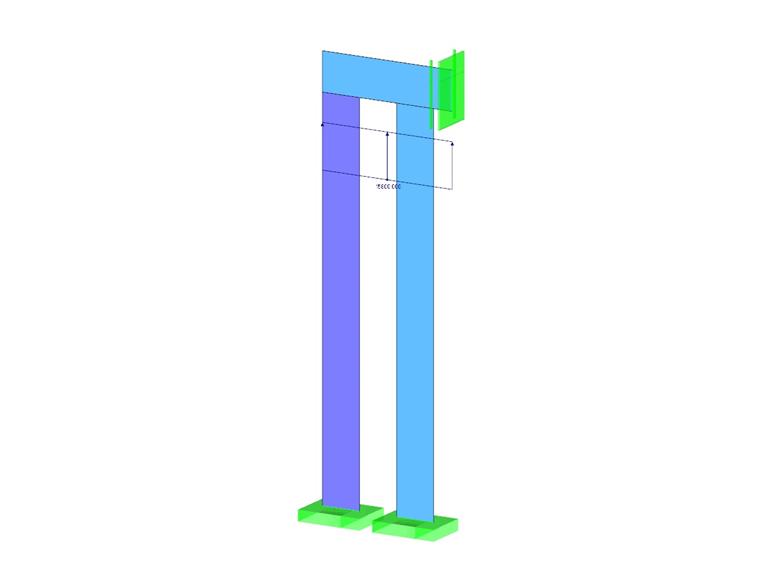

Vier Stützen sind unten fixiert und oben durch einen starren Block verbunden. The block is loaded by pressure and modeled by an elastic material with a high modulus of elasticity. The outer columns are modeled by linear elastic material and the inner columns by a stress-strain diagram with decaying dependence. Assuming only the small deformation theory and neglecting the structure's self-weight, determine its maximum deflection.
Beanspruchte plastische Träger mit abnehmender Spannungs-Dehnungs-Linie
