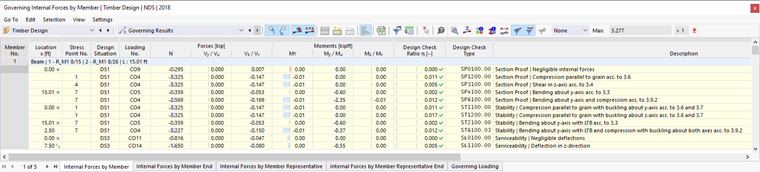

In these result tables, you can display the governing design results and their corresponding internal forces. Various sorting options are available (by member or member set, and by member end or member set end).

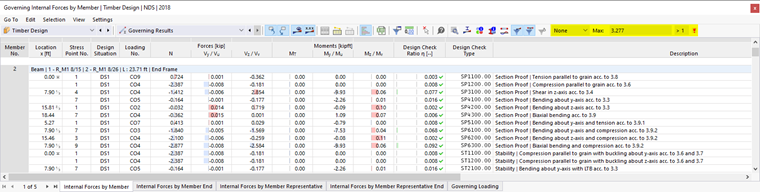

The tables initially show all available design checks at the corresponding location. For this purpose, the internal forces that lead to the maximum design ratio for the respective design check are output. If you only want to output the internal forces associated with the governing design check at one location, you can select "Max" for the design ratio in the result filter.
The internal forces of the governing design checks at the member or member set ends can give you an indication as to which load combination could be governing at this location; for example, for connection design.
The Result Table Manager provides additional filter options, such as by limit state (ultimate or serviceability limit state) and design check type (cross-section design check or stability analysis).
