Result diagrams

The result diagrams of members are also available for the results of timber design. This allows you to evaluate designs in diagrams as you are accustomed to from the results of structural analysis.

The result diagrams can be accessed as described in the chapter Result Diagrams of the RFEM manual. You can also use the button which is available in the result tables of the 'Timber Design' category for member objects.

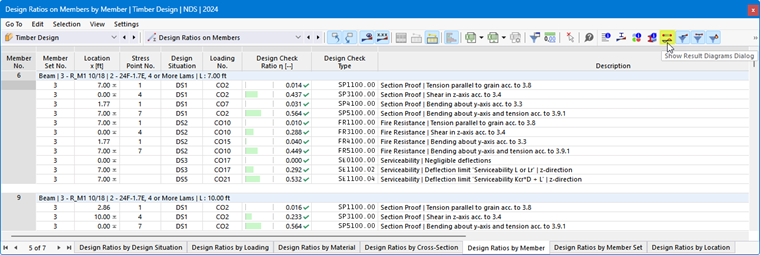

Button 'Show Result Diagram Dialog Box' in Table Toolbar

The 'Result Diagrams' dialog box appears. The 'Timber Design' result category is preset.

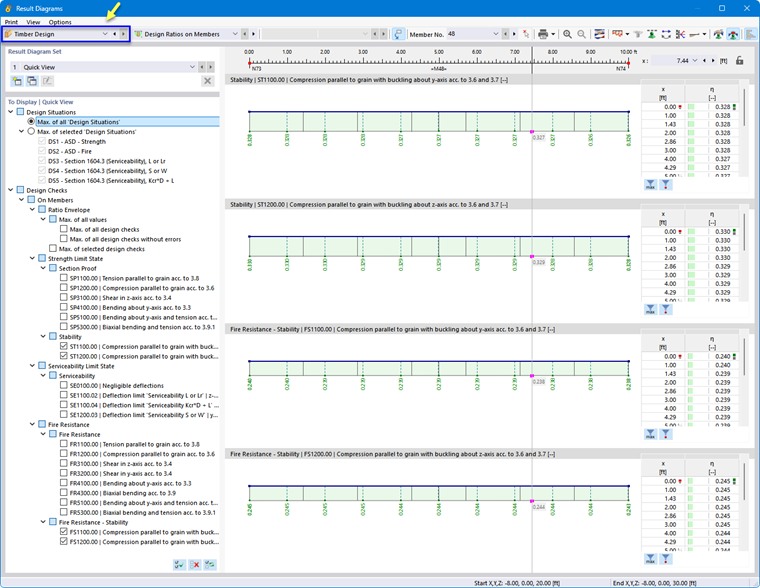

Dialog 'Result Diagrams' with diagrams for utilization and design

In the 'Display | Quick Overview' section, specify the designs whose graphs are to be represented in diagrams. The selection options for member graphs correspond to those of the 'Navigator - Results' (see the image Displaying Several Result Types). Each result type is displayed in a separate diagram.

If you want to check the results of another member, select it in the 'Member No.' list or use the button for graphic selection.

In the 'Utilizations on Members' list, you can also select another object type.

Selecting Object Type for Result Diagrams

The other options are described in the chapter Result Diagrams of the RFEM manual.
