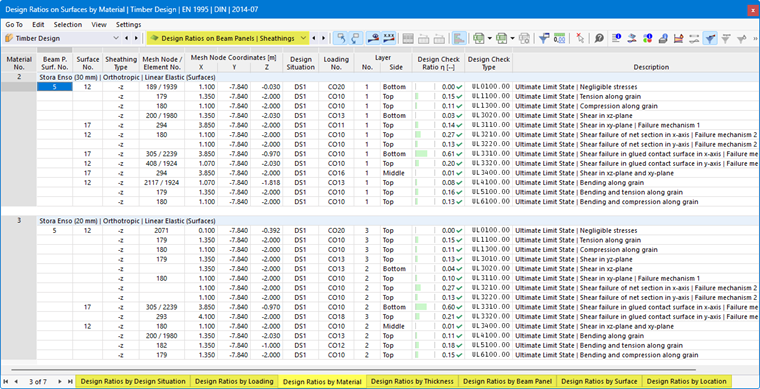

The result tables of the category Utilizations on Beam Panels | Sheathings contain the result data for the design checks of the sheathings of beam panels with the respective utilizations.
The surface results are sorted in the tabs according to the following criteria:
- Loads (Design Situations, Load Combinations)
- Surface Properties (Materials, Thicknesses)
- Objects (Beam Panels, Surfaces, FE Mesh Nodes)
Beam Panel Surface No.
Each beam panel is assigned to a surface. The number of this surface is specified here.
Surface No.
For each design check criterion, the number of the surface showing the greatest utilization is specified.
Sheathing Type
The location of the sheathing is described here. The side '-z' refers to the negative surface side (in the opposite direction of the local z-axis), the side '+z' to the positive surface side (see Beam Panel | Sheathing).
Mesh Node / Element No.
The number of the FE mesh node where the maximum utilization was determined is given. A second number designates the finite element adjacent to the FE node, if deviating design-relevant internal forces exist there.
Mesh Node Coordinates
The global coordinates X, Y, and Z of the FE mesh nodes are displayed in the three columns.
Design Situation
This column lists the numbers of the Design Situations for which the individual utilizations are available.
Loading
The numbers of the load or result combinations that are governing for the respective design checks are given.
Layer Side
The stresses are examined for the following locations of the sheathing cross-section:
- Top
- Middle
- Bottom
Using the
button, you can graphically display the stress curves in the layers in the Result Curves at Surface Point dialog.
Design Check Criterion
This column shows the design check conditions according to Standard. The degree of the respective utilization is expressed by the length of the colored bar.
Design Check Type
Each design check is identified by a code with a number. For example, the design checks of the ultimate limit state according to Eurocode have the code 'UL', and the design checks of the serviceability limit state have the code 'SE'. The design check type is explained in the Description column.
Design Check Formula
You can activate this column in the Result Table Manager. It specifies the standard equations used for the design checks.
Description
Each design check is explained by a short description with reference to the chapter in the standard.
You can display the Design Check Details for a specific utilization using the
button or by double-clicking the row.
Filtering Results
The chapter Utilizations on Members describes how you can filter the results by limit state and by utilization.
