Mechanical Displacement System Design, Saint-Martin-de-la-Porte, France
Customer Project
![[FR] CP 001168 | Design of Mechanical Displacement System in Saint-Martin-de-la-Porte, France](/-/media/Images/netgenium/thumbnails/2/9/8/6/8/2986861/2986861.png?la=en&mw=578&mlid=9D16268F9C3849E2A4E33FE235C233AA&hash=17A5EB10D6E1CDFD7D3F2CAA813193F049B20BB7)
-
01

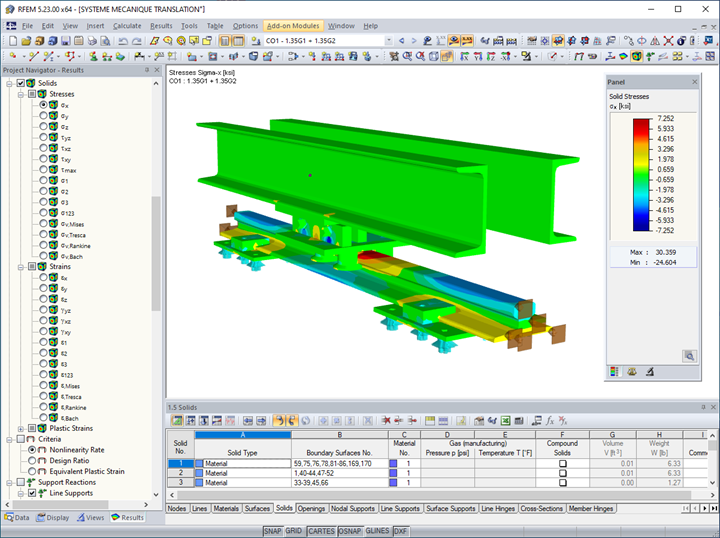

Image - Rail system with Sigma-X stresses (© AGICEA)
-
01
Image - Rail with components (© AGICEA)
-
01
Image - The axes and the rollers, the contact stresses of the rollers on the rail and a clamp element (© AGICEA)
-
01
Image - Rail system with Sigma-X stresses (© AGICEA)
-
01
Image - Mechanical Displacement System Design, Saint-Martin-de-la-Porte, France
-
01
Image - Mechanical Displacement System Image (© AGICEA)
-
02
Image - Rail with components (© AGICEA)
-
02
Image - Rail system with Sigma-X stresses (© AGICEA)
-
02
Image - The axes and the rollers, the contact stresses of the rollers on the rail and a clamp element (© AGICEA)
-
02
Image - Rail system with Sigma-X stresses (© AGICEA)
-
02
Image - Mechanical Displacement System Design, Saint-Martin-de-la-Porte, France
-
02
Image - Mechanical Displacement System Image (© AGICEA)
-
03
Image - The axes and the rollers, the contact stresses of the rollers on the rail and a clamp element (© AGICEA)
-
03
Image - Rail system with Sigma-X stresses (© AGICEA)
-
03
Image - Rail with components (© AGICEA)
-
03
Image - Rail system with Sigma-X stresses (© AGICEA)
-
03
Image - Mechanical Displacement System Design, Saint-Martin-de-la-Porte, France
-
03
Image - Mechanical Displacement System Image (© AGICEA)
-
04
Image - Mechanical Displacement System Image (© AGICEA)
-
04
Image - Rail system with Sigma-X stresses (© AGICEA)
-
04
Image - Rail with components (© AGICEA)
-
04
Image - The axes and the rollers, the contact stresses of the rollers on the rail and a clamp element (© AGICEA)
-
04
Image - Rail system with Sigma-X stresses (© AGICEA)
-
04
Image - Mechanical Displacement System Design, Saint-Martin-de-la-Porte, France

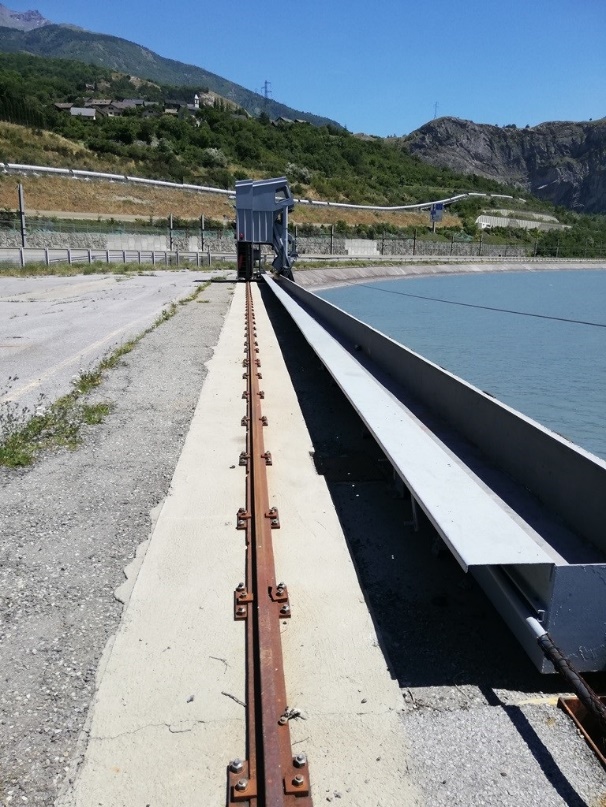

The hydroelectric power plant project goal was to analyze the resistance of a double mechanical displacement system on rails subjected to tensile stress.
| Structural Analysis |
AGICEA, Orange, France www.agicea-bureau-etudes.fr |
| Investor |
Groupe MOSCATELLI, Sorgues, France www.groupe-moscatelli.com |
Model
Technical Details and Calculation

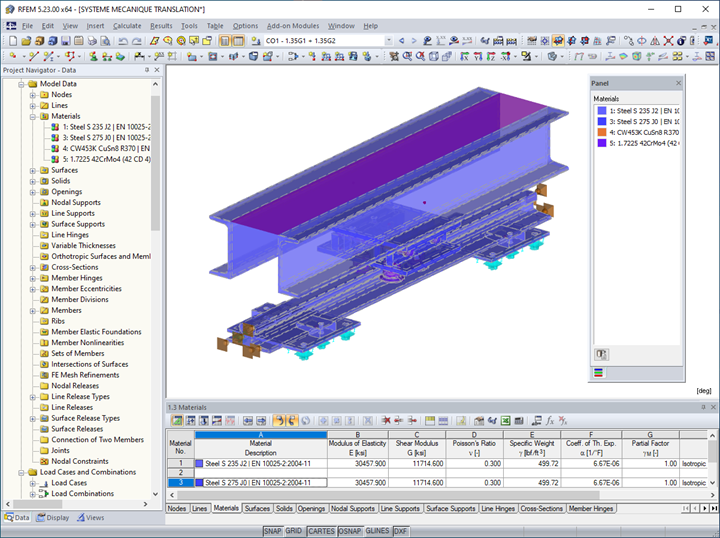

The model includes various solids with different materials (steel S235, S275, bronze, steel 42CD4). The rail is supported by clamping connections fixed on foundation plates. The entire system can be moved, with the four rollers fixed on a slide component and limited to displacement in the x- and y-directions. The entire frame structure is represented by double UPN sections.
Since no tension force was specifically defined, the model was calculated with an iterative method taking into consideration the Eurocode safety factor until the stability and elastic limit of each material was reached.
The decision was made to calculate each component as a solid model (3D FEA) to check each mesh point as well as whether the contact stresses and internal deformations would affect the behavior of the respective part. Additionally, the mesh was considerably refined.
Result Evaluation
After the calculation, the deformation was checked to ensure realistic results.

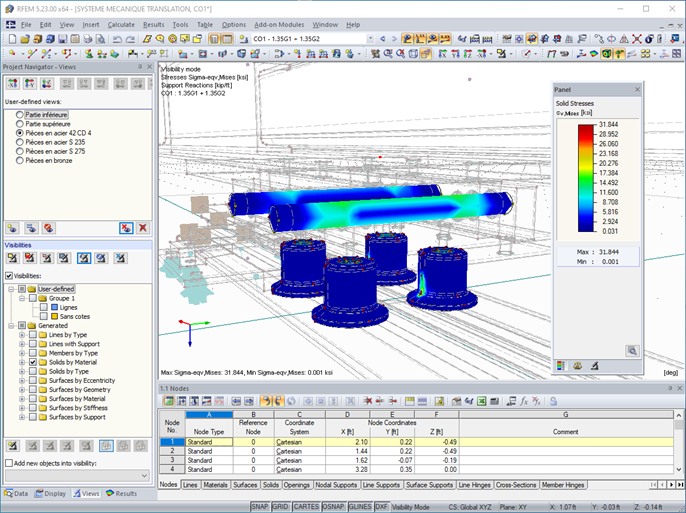

Then, each component was isolated from similar material elements to view the maximum von Mises stresses. Figure 03 displays the clamping connection and roller von Mises stresses.
The iterative calculations were completed until the stability or elastic limit of the material was reached to derive the maximum allowable tensile force in the system. This maximum allowable load was determined to be 1.41 tons.
In addition, the project calculation package has been published where all results, input data, and design checks can be reviewed.
