Objects to Design

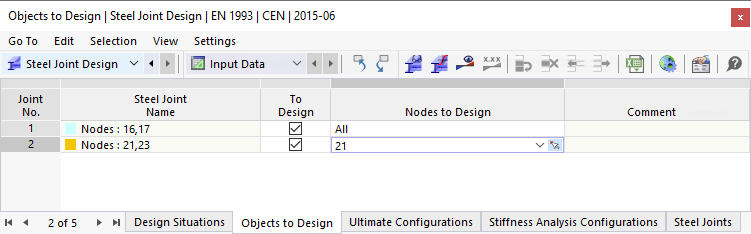

The "Objects to Design" table controls which joints are analyzed in the design.

In the "To Design" column, use the check boxes to specify which joints should be designed.

The "Nodes to Design" column controls the design of the nodes specified for each joint. "All" is entered by default, so all nodes the each defined joint are designed. By clicking into a cell, you can design the nodes individually: If you want to only design certain nodes, enter their numbers.

Tip

Use the Select Individually button in the cell to select the nodes graphically.
