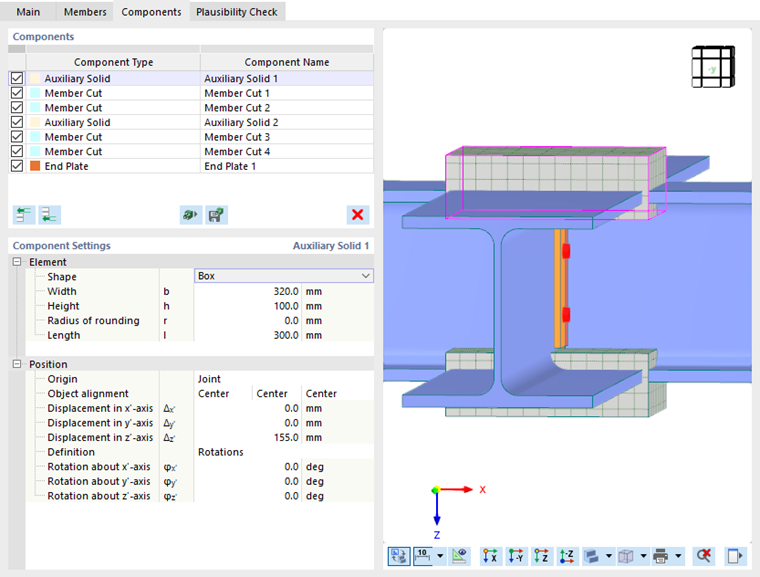

With an auxiliary solid , you can define a three-dimensional area in the geometry of the connection node. You can then use the component to adjust objects or position other components.
Element
In this category, you first define the shape of the solid. Then, define the three-dimensional dimensions using the corresponding parameters.

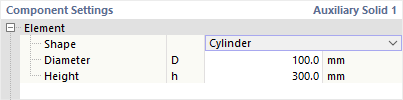

The list provides several options for the 'Shape' of the auxiliary solid.
- Box: Definition of a cuboid using the parameters of width, height, and length, optionally with rounding of the corners
- Cylinder: Definition of a circular cylinder using the parameters of Diameter and Height
- Cross-section: You can define it using a cross-section that you open with the [Select] button
in the cross-section library
Position
In the second category, you can define the position of the auxiliary solid.
The 'Origin' controls the object to which the position refers. In addition to joint nodes, members, member plates, or sheets are available for selection in the list. Then, enter the 'Object Orientation' to define the reference point on the solid. The lists provide specific selection options here as well.
You can then use the displacement vectors and rotation angles to define the position of the auxiliary solid.
