The Add-on Timber design is fully integrated into RFEM or RSTAB. Therefore, you can use all the options known from the main program to document the graphical results of the utilizations and designs. The general procedure for preparing graphics for the printout is described in the Graphics chapter of the RFEM manual.
Graphics of the Work Window
The Graphic for Timber Design chapter introduces the different result types that are graphically available for members and surfaces. You can print the current view directly via the print function or transfer it to the printout report.

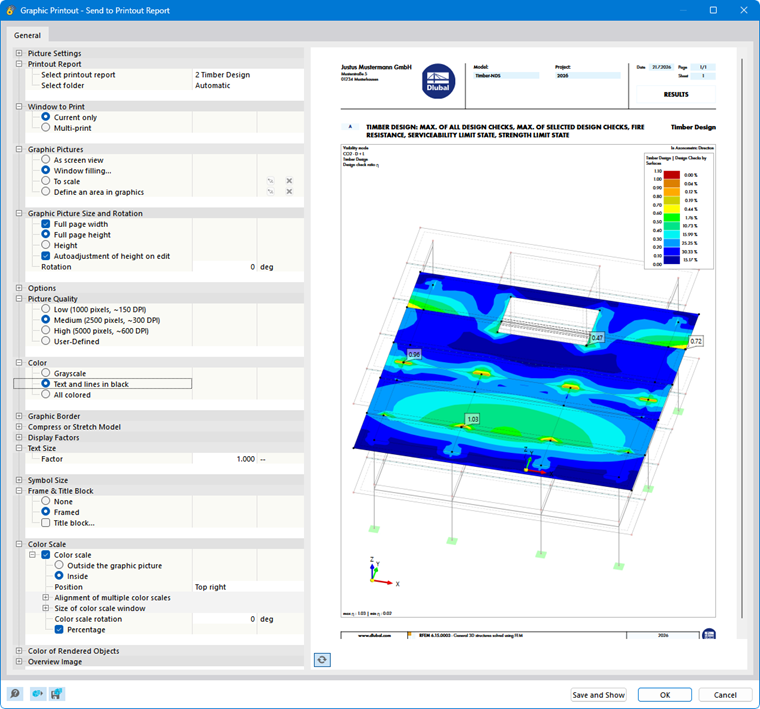

In the 'graphic printout' dialog box, make the print settings for the image as usual.

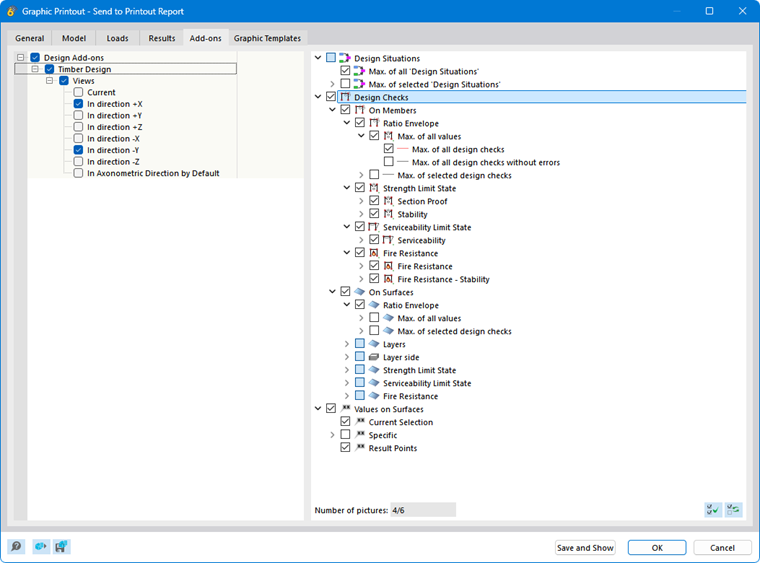

If you activate the Multi-print option in the 'Which Windows' category, you can define the specifications for printing multiple windows or the multi-print of graphics in the 'Add-ons' tab (see the Using Multi-Print chapter of the RFEM manual). The graphics are then sorted into the printout report under the timber design results.
Design Check Details and Result Diagrams

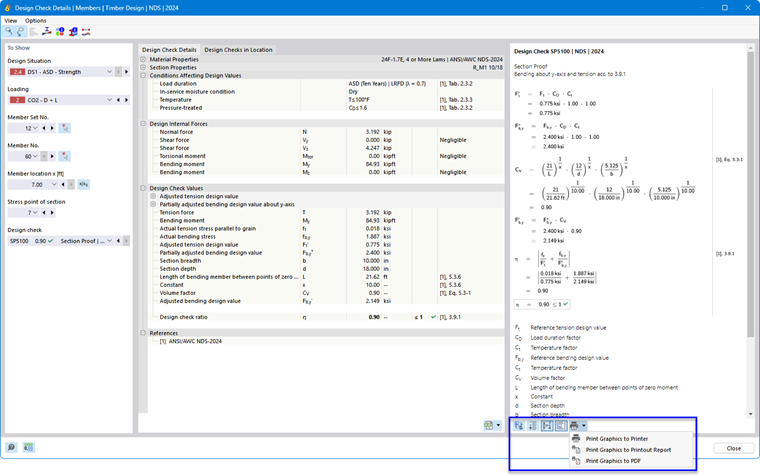

Print functions are also available in the dialog boxes of the design check details and result diagrams. You can print the following graphics directly, save them as a PDF, or transfer them to the printout report:
- Formula view of the Design Check Details
- Result Diagrams in Cross-Section
- Result Diagrams in Surface Point
- Result Diagrams on Member or Member Set
- Charring Depth-Time Diagram
