A result section creates an intersection plane or line through the model. Thus, the results can be evaluated on these intersection lines with surfaces and solids.

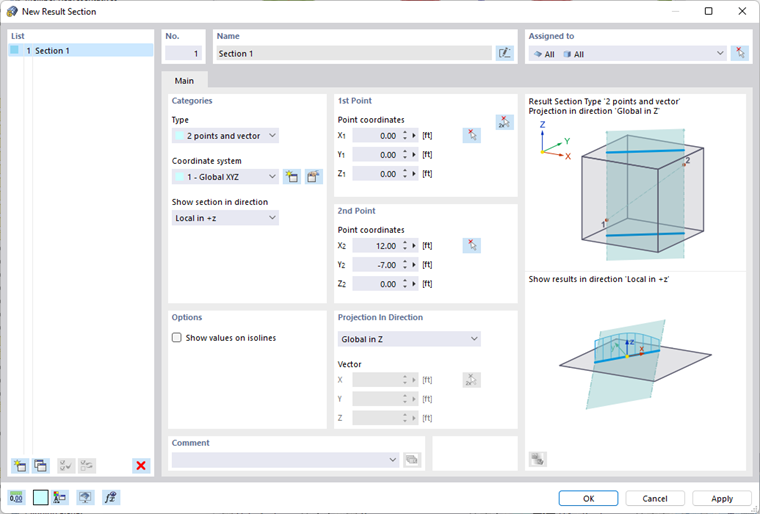

RFEM and RSTAB provide two different definition types for a result section. The first option is to freely define a section plane through the model using two points and a vector. The second option is to define the result section on one or more already existing lines.
