Vertical Stirrups

Block Foundation with Rough Bucket Sides

Similarly to the procedure described for horizontal stirrups, you can arrange the vertical stirrups by a number or spacing.

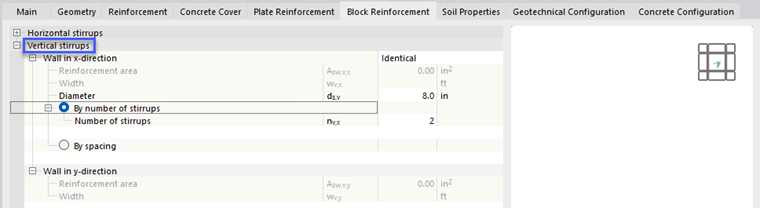

Concrete Foundations | Block Foundation – Vertical Stirrups

Diameter

First, select the diameter d_s,v of the vertical stirrups.

Alignment Method

You have two options to arrange the stirrups:

• By number: Enter the desired number of vertical stirrups n_v,x.
• By spacing: Define the stirrup spacing s_v,x for the uniform distribution of the stirrups.

Block Foundation with Smooth Bucket Sides
