Using Multi Print

This chapter describes how to print the graphics of several windows.

Multi-window printing

When using several windows for your model display, you can also document the window areas on one page. Activate the More option in the 'Graphic Printout' dialog box, which is available in this case under the 'Window to Print' item (1).

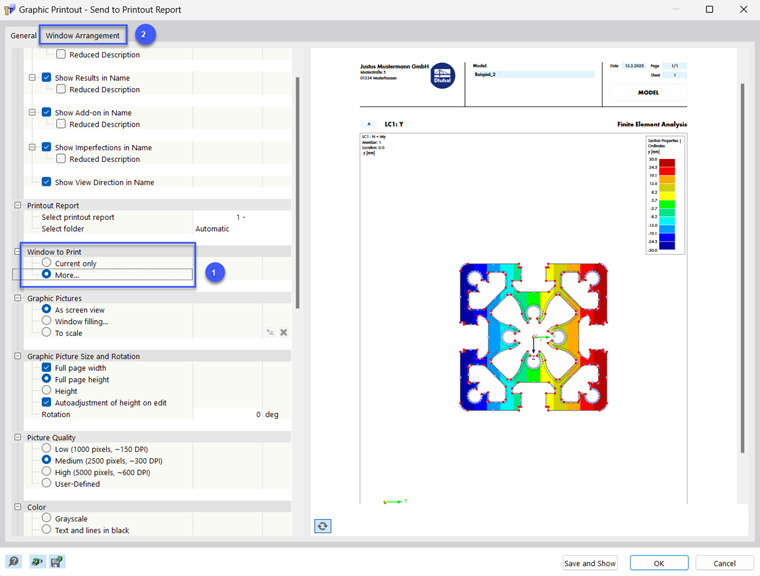

01 Printing Multiple Windows

Switch to the Window Arrangement tab (2).

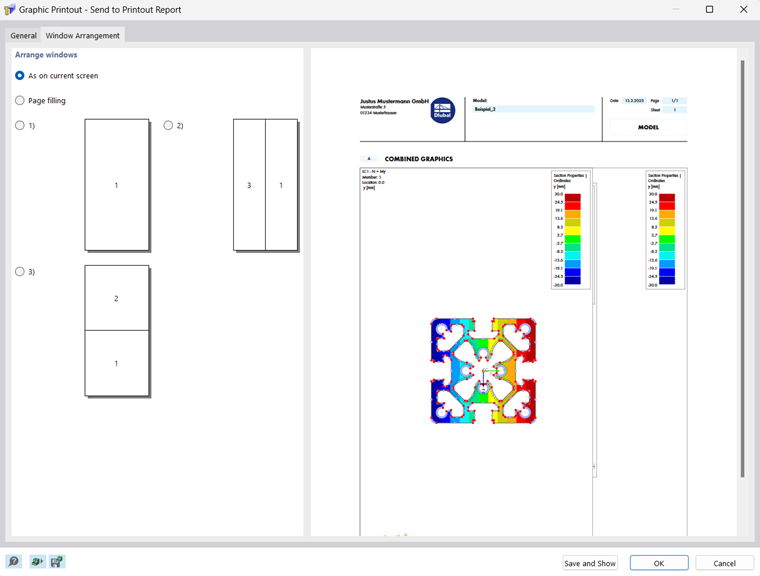

02 Defining Window Arrangement

You can specify how the windows are arranged on the sheet:

• As on current screen: The windows are arranged on the page as they are represented in the work window. If they lie next to each other in the work window, the images will be taller than they are wide when printed in portrait format.
• Page filling: Each window is printed on one page.
• 1): Only the first window (on the left or at the top of the work window) is printed.
• 2): The windows are arranged next to each other.
• 3): The windows are arranged one below the other.
