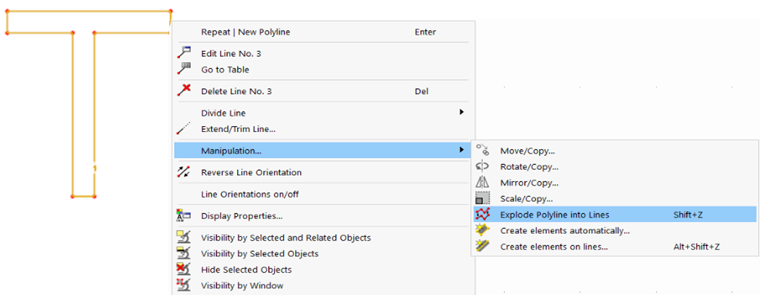

You can subsequently break down a polyline into individual lines. To do this, right-click the line to open the object context menu. There, select the Break polyline into lines function.
Alternatively, select the line and choose the Break polyline into lines function in the menu Extras → Modify lines. You can also use the
button in the CAD toolbar for this purpose.
