Graphics

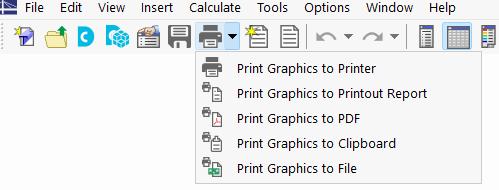

You can use any graphic displayed in the work window for your documentation. This way, you can send graphics to the printer, integrate them into the printout report, or print them as a PDF. Select the appropriate option in the list button.

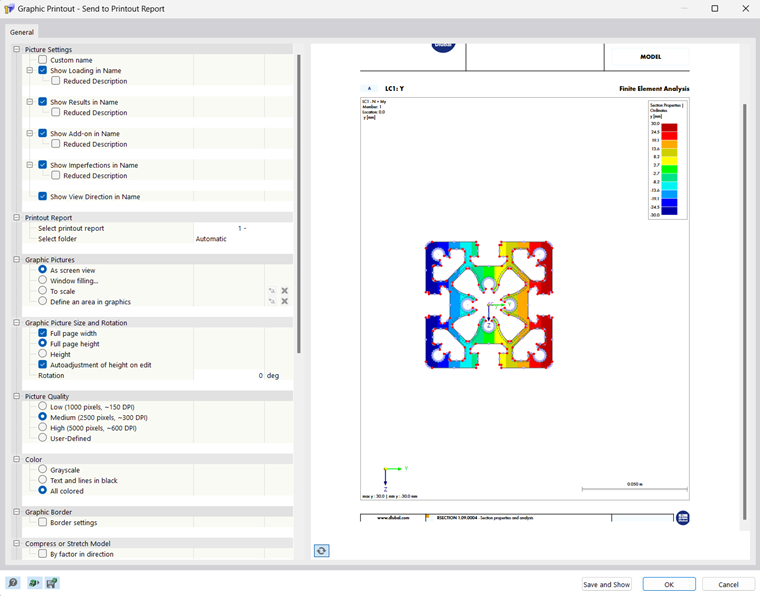

The 'Graphic Printout' dialog box appears. Specify the print settings for the image in order to transfer it appropriately to the printer or to the printout report.

Picture Settings

If you want to change the preset title of the graphic, tick the 'Custom name' check box. Then, you can enter your own description.

Printout report

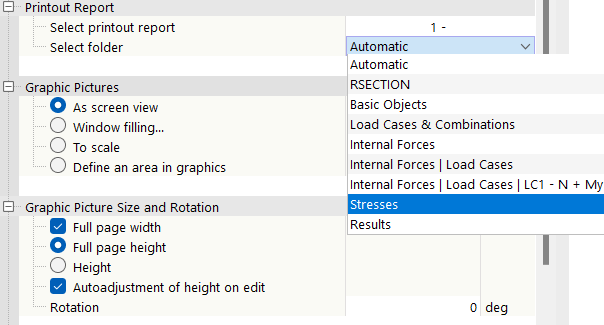

This category is available when sending the graphic to the printout report. In the 'Select printout report' list, choose the printout report where the graphic is to be stored.

RSECTION prints the graphic 'Automatically' in the associated chapter. If you want to assign the graphic to a certain category, select the chapter in the 'Select folder' list.

Window to Print

In this category, you can specify whether you want to print the 'Current (window) only', or several images. The options for printing several graphics are described in chapter Multiple printout .

Graphic Pictures

This category controls the format in which the graphic is positioned on the sheet. It is also possible to define only a part of the view. After each change, you can check the data in the preview.

• As screen view: The same display scale is used as on the monitor. This allows you to print zoomed areas or special views.
• Window filling: The overall view is scaled to the page size. The currently set angle of view is used to display the whole model in the specified Graphic Picture Size. This way, edge areas around the graphic are minimized, or sections are extended to display the entire model.
• To scale: The graphic is printed by the scale that you define in the text box. Again, the current angle of view is used. Use the button to define an area of the view for the scale-up printout (see description below).

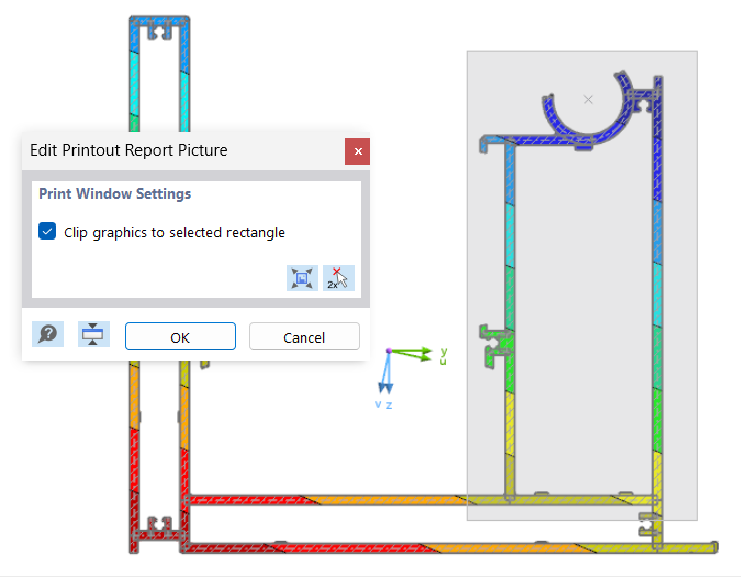

• Define an area in graphics: A user-defined area of the view is printed, which you can define graphically via window. Click the button next to the selection field. The work window appears with the 'Edit Printout Report Picture' dialog box.

Adjust the area to be printed by moving the window borders. Alternatively, use the button to define the window by clicking any two points. You can move the window by holding down the mouse button.

The button sets the current view as the area to be printed.

If you clear the 'Clip graphics to selected rectangle' check box, the picture to be printed also includes areas of the view that lie outside the rectangle window, depending on the page setting.

Graphic Picture Size and Rotation

Settings in this directory section define the size of the graphic on the sheet. If the 'Full page width' check box is ticked, the left margin column is also used for the printed image.

If you do not want to use the 'Full page height' for the graphic, select the 'Height' option. Then, you can define the height ratio of the graphic area in relation to the page height.

Picture Quality

This category helps you to adjust the resolution for printing. The medium quality is preset to a maximum of 2500 x 2500 pixels. Using a high quality of 5000 x 5000 pixels and a 32-bit color depth, a large amount of data is generated, which may cause problems for some printer drivers. Therefore, use the high resolution with caution.

To define the image quality manually, activate the 'User-Defined' option.

Color

When sending output to a monochrome printer, you can print the 'Text and lines in black' instead of 'Grayscale's to improve readability. Isobands and support symbols are not affected. They appear in color in the printout.

Graphic border

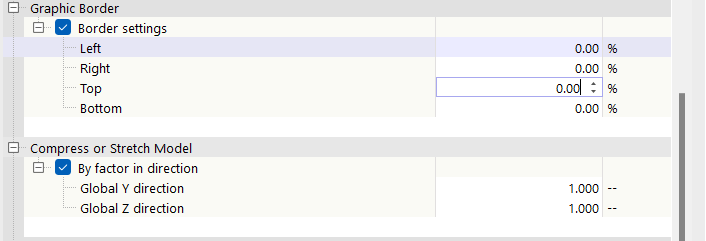

If you want to adjust the margins around the image, select the 'Border settings' check box. Then, you can define the individual distances.

Compress or Stretch Model

If you want to show the model in a distorted way, tick the 'By factor in direction' check box. Then, you can compress or stretch the graphic by factors other than 1 for each global direction (see the image above). However, customizing settings in this way may only be required in exceptional cases.

Text Size

The size of the font depends on the printer driver. If these texts are barely legible in the graphic printout or appear oversized, you can change the scaling factor in this directory section. It is often necessary for large-format plotting.

Symbol Size

The size of the symbols for points, stress points, axis systems, etc. also depends on the printer driver. If these symbols appear too small or too large in the graphic printout, you can adjust the scaling factor in this directory section. The setting is helpful for plotting.

Frame & Title Block

The graphic can be printed in the printout without a frame ('None') or it can be 'Framed'.

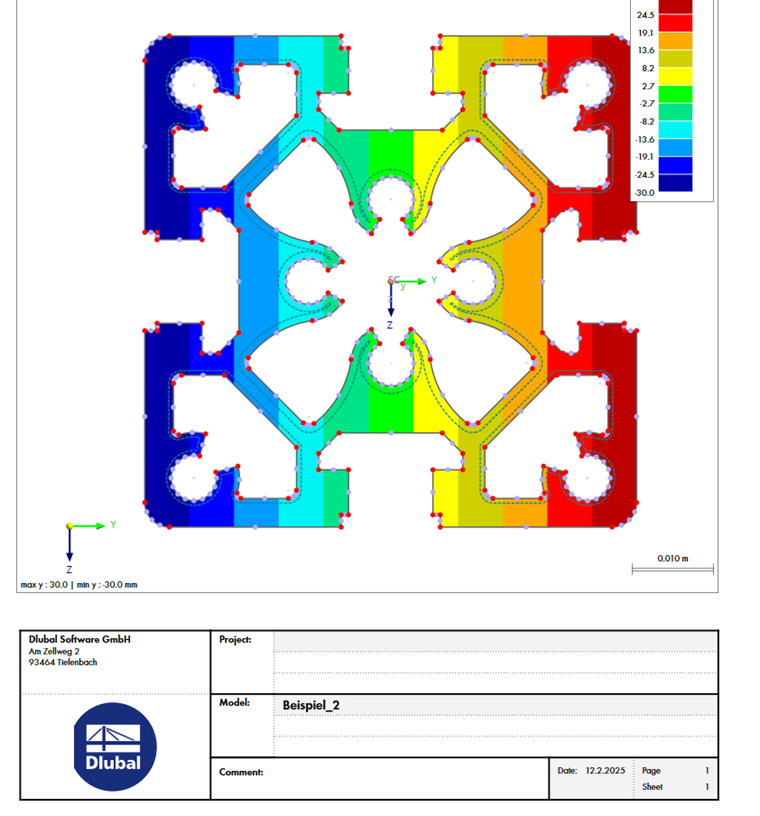

If you want to add a title block to the graphic, tick the corresponding check box. RSECTION creates a standard title block with the project and model information.

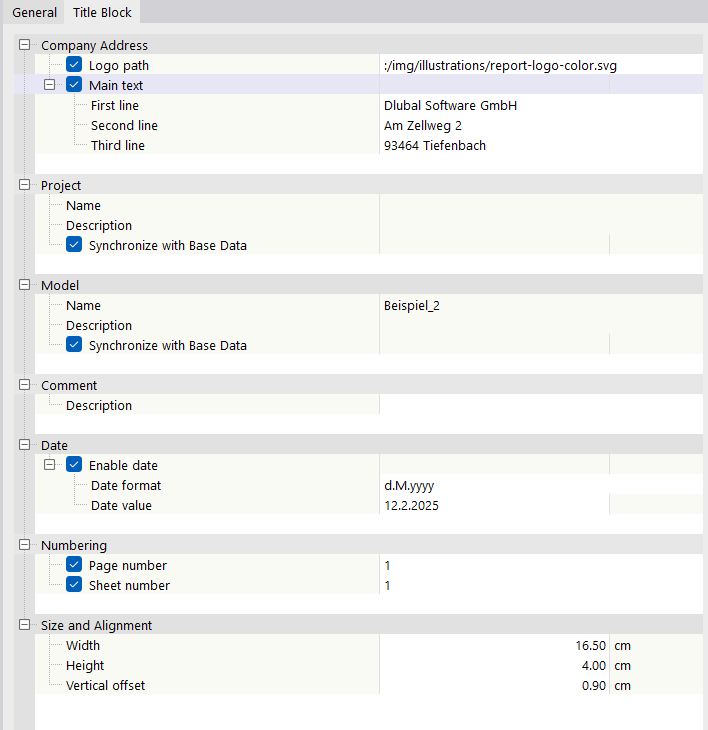

In the Title Block tab, you can adjust the content and layout of the title block.

If you want to change the preset project and model descriptions, clear the 'Synchronize with Base Data' check boxes. Then, the fields become accessible for user-defined entries.

In the 'Size and Alignment' category, you can adjust the width and height of the title block. The value for 'Vertical offset' describes the distance between graphic and title block.

Color scale

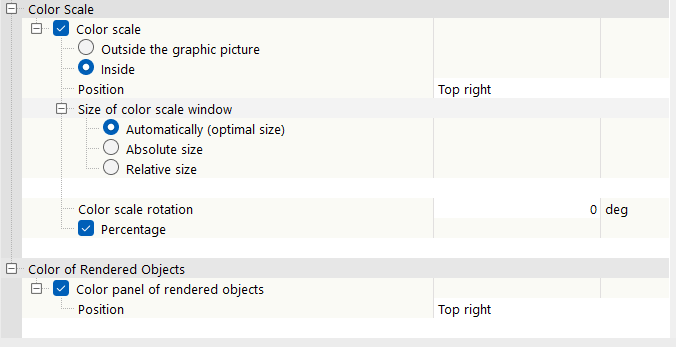

This category is available when results are displayed in multiple colors. Define whether and how the legend of the control panel is shown in the graphic printout.

If the color scale is 'Outside the graphic picture', a strip of the graphic window is detached and used for the legend. You can adjust the width of the strip under the 'Size of color scale window' entry.

If the color scale is 'Inside', it overlaps a part of the image. You can adjust the 'Position' of the legend with the entries of the list, defining a different corner.

The 'size of the color scale window' is automatically selected so that the legend is easy to read. However, you can also specify the size in absolute dimensions or relative to the image size.

If necessary, you can set a 'Color scale rotation'. Use the entries in the list.

If you do not need the percentages in the legend, clear the 'Percentage' check box.

Color of Rendered Objects

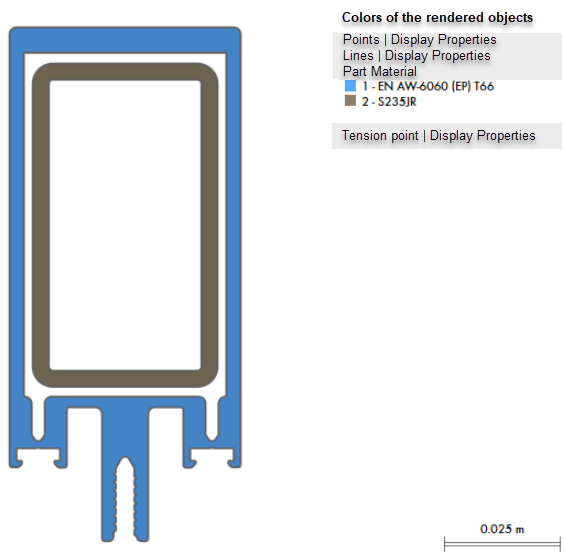

The 'Color panel of rendered objects' check box controls whether the legend appears in the printout for graphics with color specifications set for object properties.
