Set Center Lines | Angle Axis

With the Set Centerlines | Angular Axis function in the Tools menu, you can create centerlines between parallel or also non-parallel lines. Alternatively, use the button in the CAD toolbar.

Select the lines one after another in the work window by clicking the mouse. As soon as you move the mouse over the second line, you can see the centerline in the preview.

For parallel lines, the centerline is created between the lines and the length is adjusted.

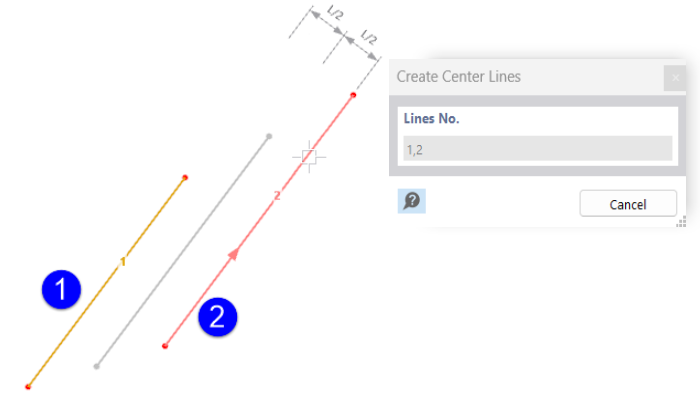

Creating Center Line Between Parallel Lines

For non-parallel lines, the imaginary intersection point of the lines is determined and the angle bisector is created.

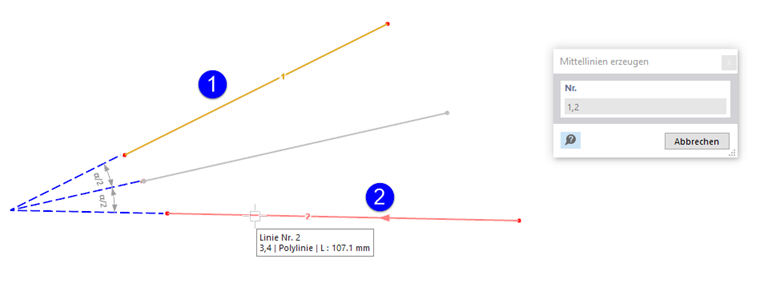

Creating Center Line Between Non-Parallel Lines
