Changing Units

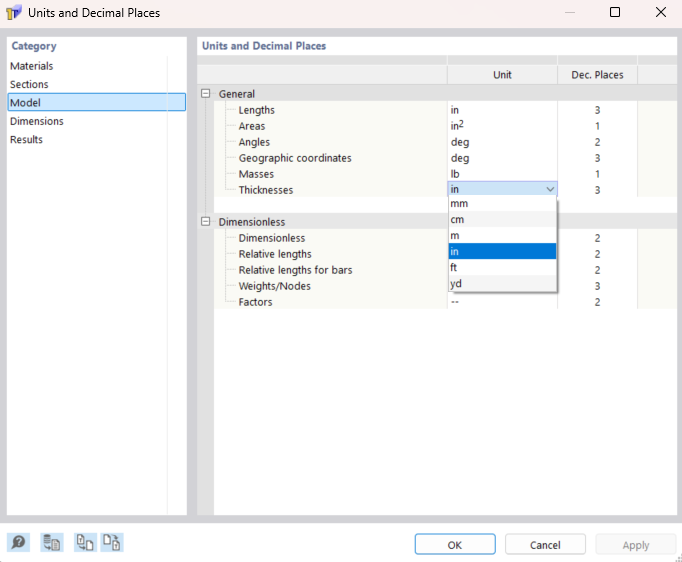

During installation, the libraries are arranged according to country and the units are adapted to the country settings. To adjust the units, open the Edit menu and select Units and Decimal Places. Then, in the "Units and Decimal Places" dialog box, you can enter user-defined settings.

First, define the Category on the left. Now, you can adjust the units and decimal places of the values.

In many dialog boxes, you can open the "Units and Decimal Places" dialog box directly by using the  Units and Decimal Places button. The relevant units are then marked with a red triangle.

Info

You can change the units at any time during modeling. The values will be converted accordingly.

Saving and Importing a Units Template

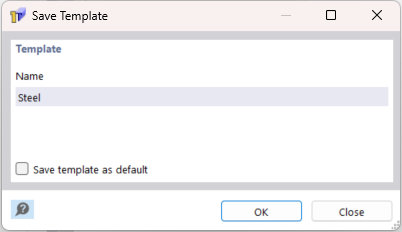

You can save the modified units as a template and use them again for other models: In the "Units and Decimal Places" dialog box, click the  Save Template button at the bottom right. In the "Save Template" dialog box, define the Name of the template.

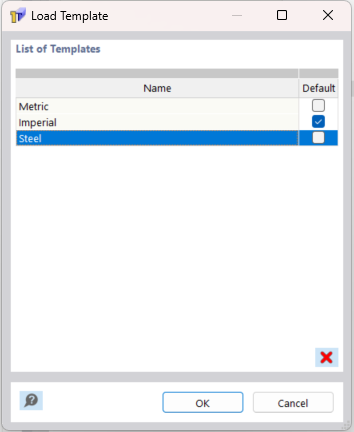

You can import the template into another model: In the "Units and Decimal Places" dialog box, click the Opening Template button at the bottom (in the middle). A new dialog box opens where you can also select your saved template in addition to a metric and an imperial (Anglo-American) unit profile.
