Opening the Dialog Box for Entering New Objects

There are different ways to open an input dialog box:

• 'Insert' Menu

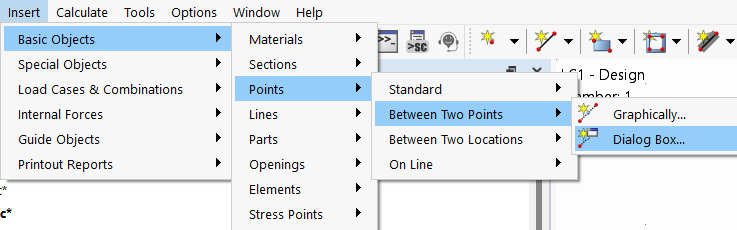

01 Menu "Insert"

• Buttons in Toolbar

02 Quick Access Buttons

• Shortcut menu in Navigator

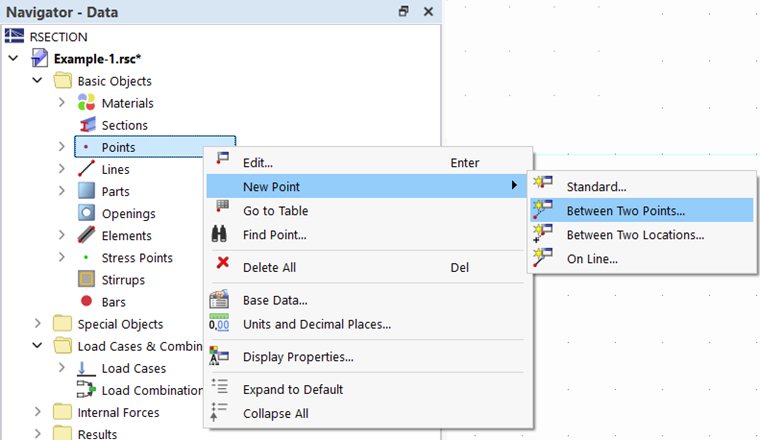

03 Shortcut Menu in Navigator - Data for "Points"

• Shortcut menu or double-click in Table

04 Shortcut Menu in Table

Double-click an empty row. Alternatively, you can use the shortcut menu of the row number.

• button in Dialog Box

06 Button "New" in Dialog Box

The input dialog boxes are often organized in several tabs, which depend on the object types and the selected options. For example, the 'New Line' dialog box includes a tab for the line type 'Arc' and a tab for assigning points when the 'Point on Line' option is selected .

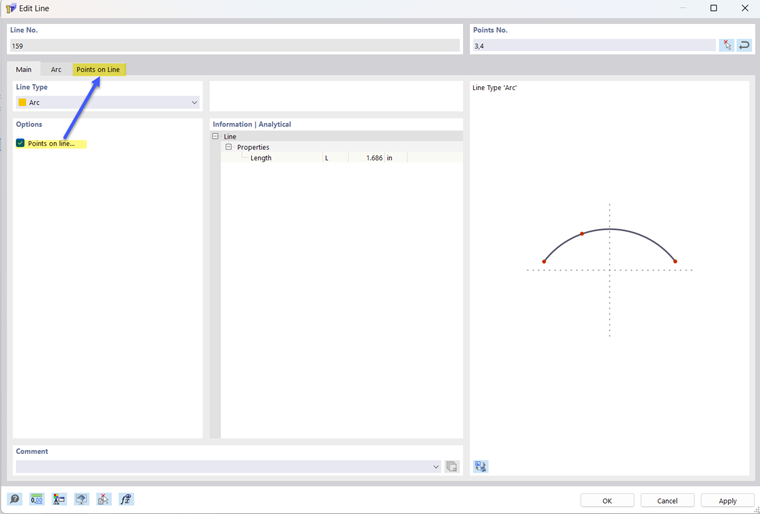

07 Input Dialog Box "New Line" with Tab for Selected Option "Points on Line"
