Selection

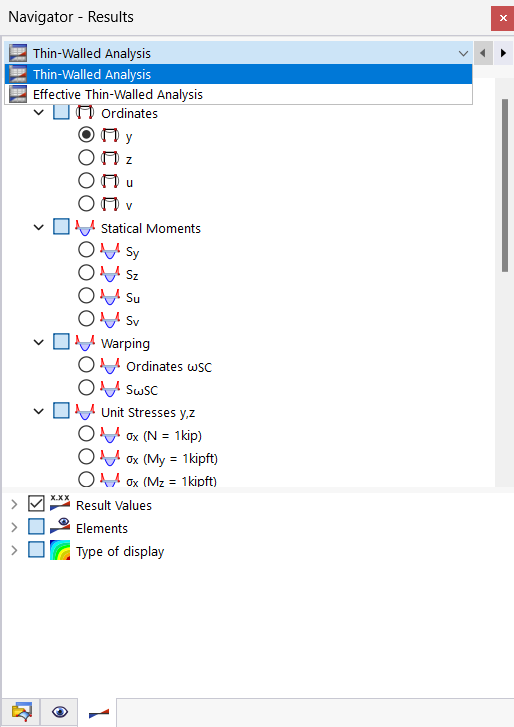

The Navigator – Results controls whether to display ordinates, static moments, or stresses on the gross cross-section or on the effective cross-section in the graphic.

Info

The effective cross-section is calculated if the Effective Section / Steel / Aluminum Section option is activated in the Model – Base Data and the internal forces are defined.

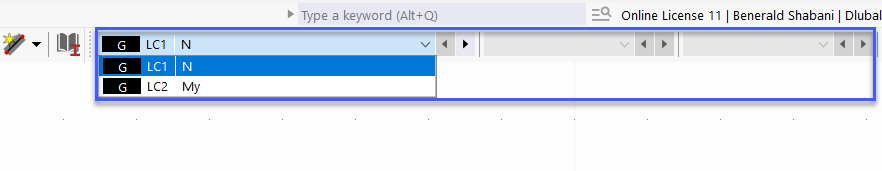

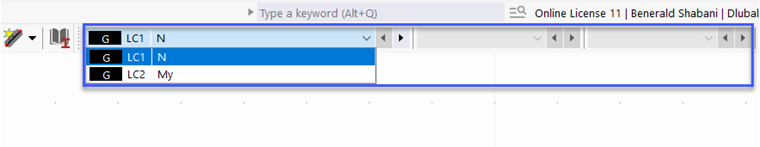

You can switch between the results of the load cases / load combinations, members, or x-locations using three lists in the toolbar.
