Individually

With the 'Renumber | Individually' function you can adjust the numbers of model objects one by one by clicking them in the work window. The numbering of load cases and load combinations cannot be changed. However, you can renumber them with the Move function.

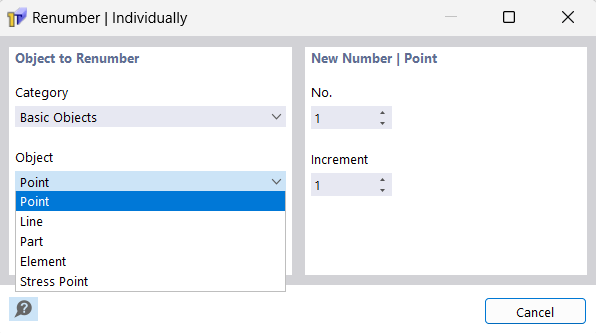

In the 'Object to Renumber' dialog section, use the drop-down lists to specify which 'Category' of model objects and which 'Object' you want to renumber.

In the section 'New Number' enter the starting number for the new numbering. Enter the 'Increment' as the value by which the numbers of the objects are increased. You can also decrease the numbering by setting negative increments. However, make sure that no resulting numbers are smaller than 1.

Click the relevant objects one after the other in the work window. The numbering will be adjusted based on the specified starting number and the 'Increment'.

You can change the 'Category' at any time without closing the dialog box and continue renumbering. Pay attention to the new start number.

Info

Only free numbers are allowed to be used when renumbering individual objects.
