Reinforcement

In the Reinforcement tab, specify the material and type of reinforcement for the foundation plate.

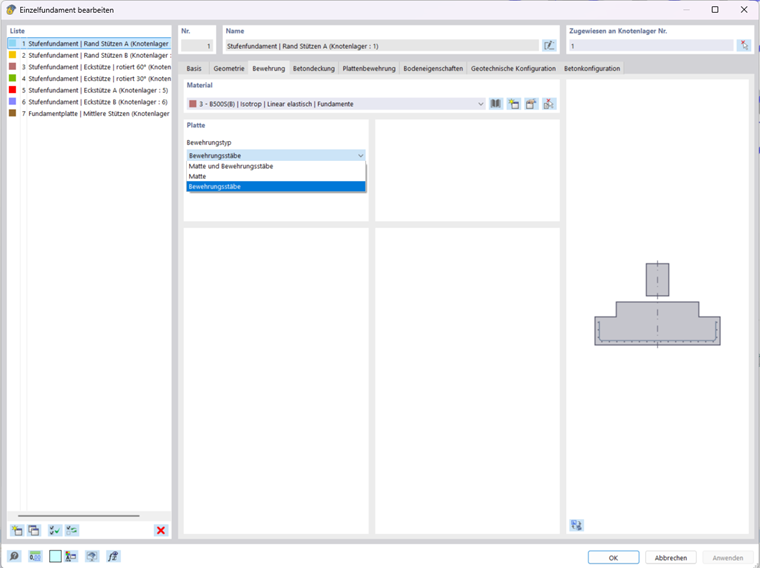

Step Foundation | Tab Reinforcement

Material

Select the suitable reinforcement material from the list, for example, B500S(A). Use the button to define a new reinforcing steel.

Plate

Specify the reinforcement type for the foundation plate here. There are three options to select from in the list:

• Mesh and rebars: Combination of mesh and rebar
• Mesh: Reinforcement with mesh only
• Rebars: Reinforcement with rebar only
