Design Ratios on Nodes

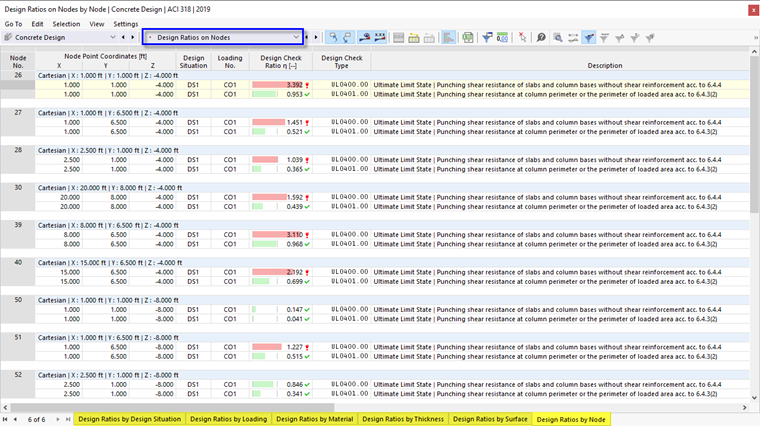

The result tables of the Design Ratios on Nodes category contain the result data for the performed punching shear design checks with the respective design ratios.

The punching shear design checks of the nodes are sorted in the tabs according to the following criteria:

  • Loads (design situations, load combinations)
  • Surface properties (materials, thicknesses)
  • Objects (surfaces, nodes)

Node No.

For each design criterion, the number of the node with the greatest design ratio is shown.

Node Point Coordinates

The coordinates X, Y, and Z of the nodes are shown in three columns.

Design Situation

This column shows the numbers of the design situations with the individual ratios available.

Loading

This column shows the numbers of the load or result combinations that are governing for the respective design checks.

Design Check Ratio

This column contains the design conditions according to the specified standard . The utilization degree is expressed by the length of the colored bar.

Design Check Type

Each design is identified by an identifier with a number. All ultimate limit state design checks have the "UL" identifier. In the Description column, the type of the design is explained.

Design Check Formula

You can activate this column in the Result Table Manager . It shows the equations of the standard according to which the design checks are carried out.

Description

Each design is explained by a short description with reference to the section in the standard.

Tip

You can display the "Design Check Details" for a certain ratio by clicking the Design Details button or by double-clicking the row.

Filtering Results by Ratio

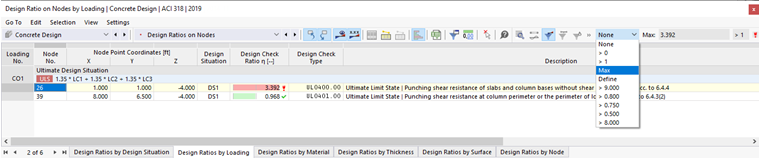

The list on the right in the table toolbar allows you to filter the tables by the utilization degree. The Max option shows only the governing design for each object.

You can also define your own filter options in the format "> #.##" in this list. Thus, only the ratios greater than the user-defined value are displayed in the table.
