Nodes

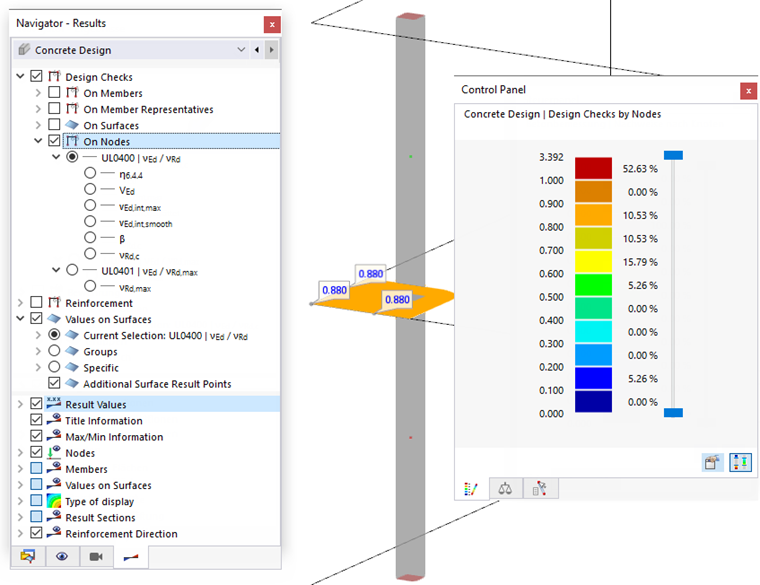

In the "Navigator - Results", specify the design results of the ratios that should be displayed graphically on the punching nodes.

The maximum design ratio of the selected design type is shown for each punching node. The position of the result distribution (column section or perimeter) depends on the selected result.
