Concrete Design Properties

In the Concrete Design Properties tab, you can specify the directions of the longitudinal reinforcement that should be used for the design in the main and secondary support directions.

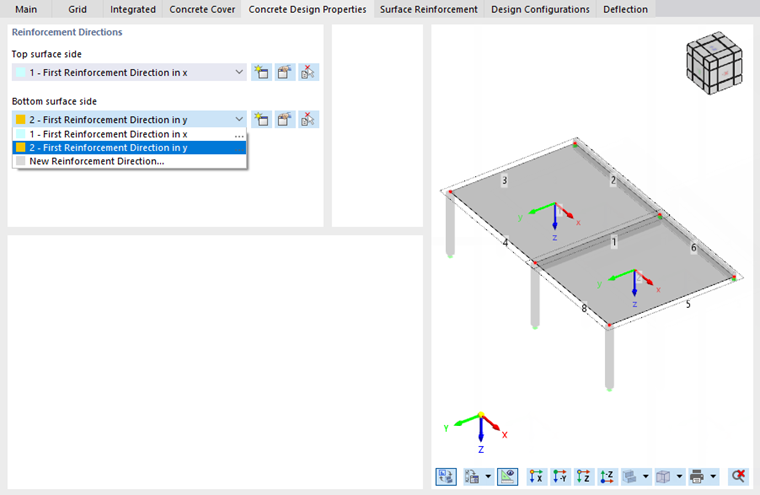

Defining Reinforcement Directions

Reinforcement Directions

For the surface design, the program requires the information on how the reinforcement directions φ₁ ("main reinforcement") and φ₂ ("transverse reinforcement") are oriented. For both the "top surface side" and the "bottom surface side", the first of the defined reinforcement directions is set by default. If you have defined other direction types, you can select the corresponding entry from the list.

Use the button to create a new (or further) type. The button allows you to edit the reinforcement direction type selected in the list. You can use the button to graphically adopt the type from another surface.

Graphic

In the graphic on the right, you can use the button to display a preview of the model. The axes of the surfaces are also displayed, so you can assign the reinforcement directions properly.
