Import

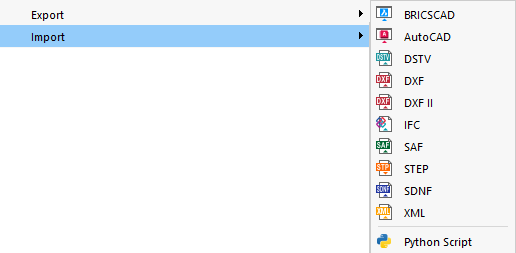

The following file formats are currently available for import on the FileImport menu:

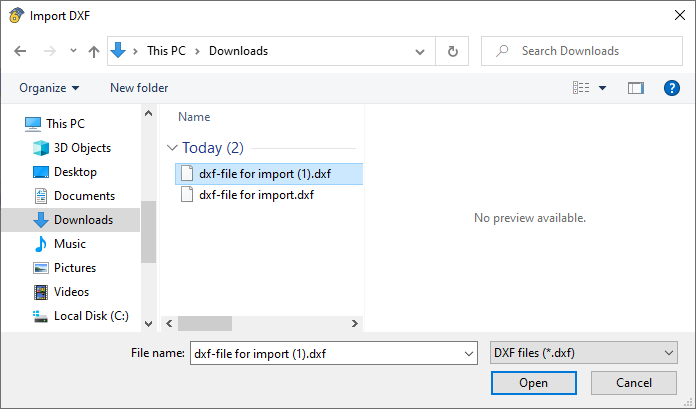

Select the file in the 'Import <file format>' dialog box.

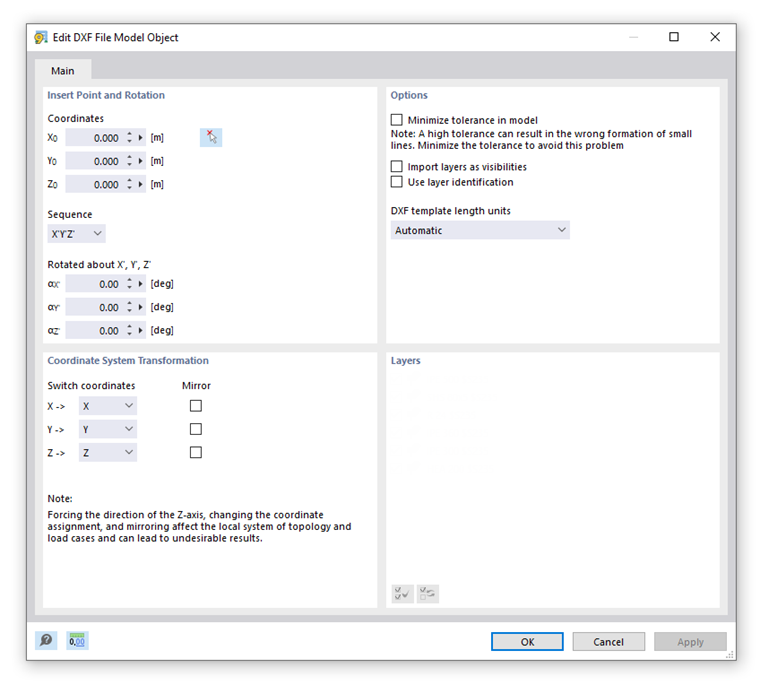

In the case of a DXF file, you can specify settings in another dialog box to import the model with the appropriate parameters. We recommend checking the 'DXF template length units'.

RSTAB automatically creates a new model and opens the file as soon as the import process is completed.

Info

The import of an AutoCAD file is linked to any application for Autodesk® AutoCAD installed on your computer.
