Emissions

The Emissions table category contains one or more result tables summarizing the expected CO₂ emissions of the model.

Emissions by Material

Emissions by Material in Table

The Emissions by Material table shows emissions by material used in the objects. Each material is listed along with its associated emissions. This enables a quick analysis of CO₂ emissions for cost estimates.

The table is based on the specifications available for the estimation of CO₂ emissions of the individual materials.

The “Quantity” column shows the number of units present. The proportional emissions are calculated from the respective unit emissions. The “Ratio” column shows the component of total emissions from all materials that a material contributes to the members.

The last row of a material indicates the emissions caused by the “Total” material. The table ends with the sum of the CO₂ emissions for the “total material,” that is, the total emissions of all materials.

Emissions by Cross-Section

In the Emissions by Cross-Section table, you can analyze the component emissions for all cross-sections that you have enabled for estimating CO₂ emissions.

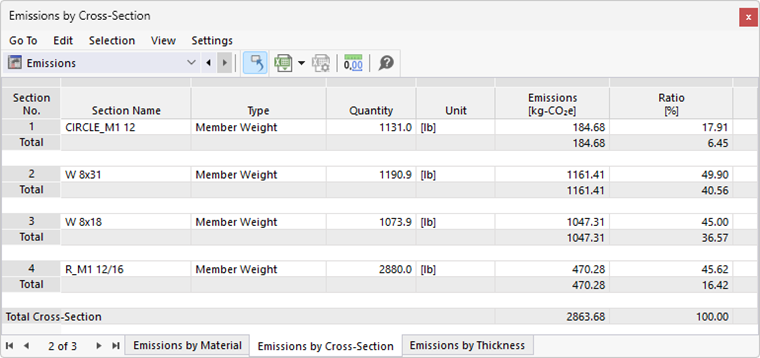

Emissions by Cross-Section in Table

The CO₂ emissions are itemized by cross-section. They are calculated based on the unit emissions and quantities. The ‘‘Ratio’’ column shows the component of total emissions from all cross-sections that a single cross-section accounts for. The table concludes with the total emissions for the gross cross-section, that is, the emissions from all cross-sections.

Similarly, the Emissions by Thickness table lists the CO₂ emissions for each thickness type.

Printout

The estimation of CO₂ emissions can—like the other RSTAB categories—be included in the printout report and used for documentation purposes. To do this, activate the Emissions category in the Printout Report Manager.

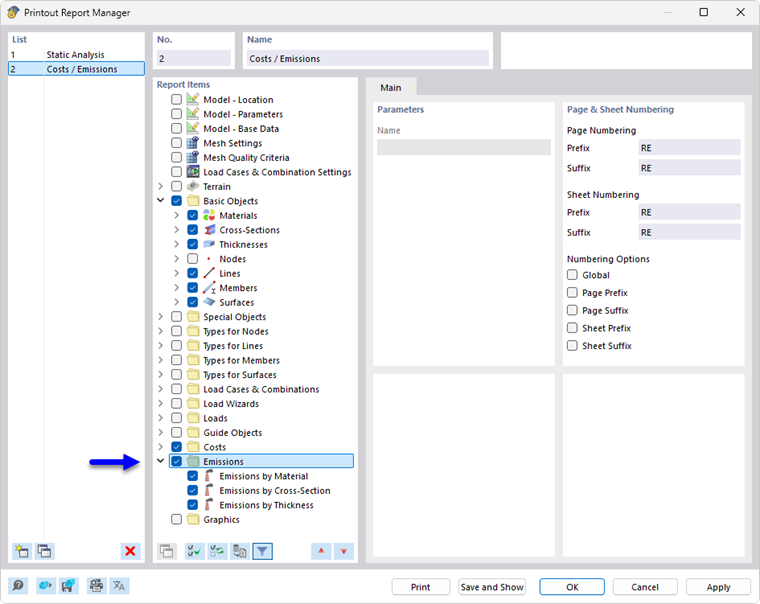

Printout Report Manager with Chapters for Emissions

In the print preview of the printout report, you can review the data, arrange it as needed, and add comments.
