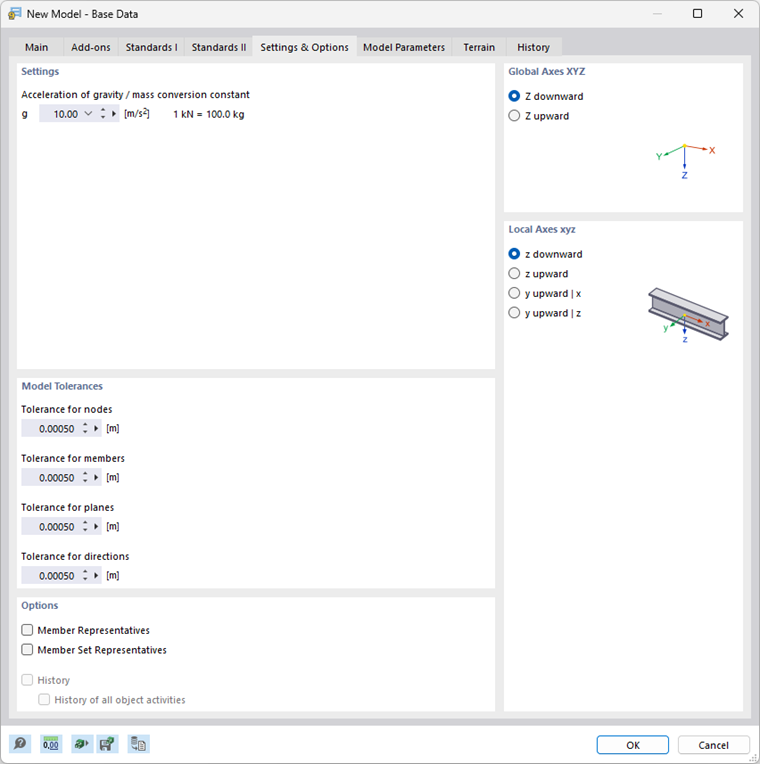

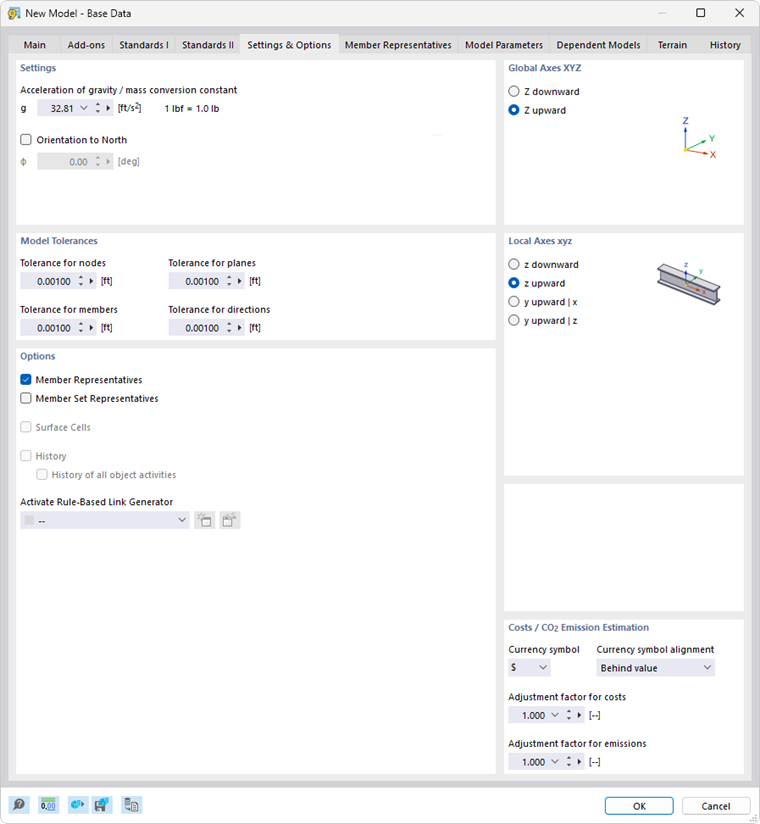

Settings and Options

In the Settings and Options tab, you can adjust the value of the acceleration of gravity, the geometric tolerances of the objects, and the alignment of the axes.

Settings

In this section, you can check the value of the 'Gravitational acceleration' g. It is used to determine the self-weight of the members, to convert masses ("mass conversion constant"), and for dynamic analyses. The approximate value of 10.00 m/s2 is preset by default and can be adjusted as needed.

The 'Alignment to the north' describes the position of the model with respect to the main cardinal direction. A north orientation of 0° is preset by default, which corresponds to a north alignment along the global X-axis. If you want to change the alignment of the model, select the check box and enter the angle Φ.

Tip

The FAQ North arrow and north orientation explains how to set the alignment to the north and display the north arrow graphically.

Model Tolerances

When modeling or importing data from a CAD application, minor geometric differences may occur in the model objects. RSTAB automatically cleans up these inconsistencies when certain distances are fallen short of. Thus, nodes that are very close to each other are merged, members located outside of planes are integrated into the respective planes, or minimally inclined members are classified as vertical.

The default tolerances are suitable for most models. For small model dimensions, it may be necessary to adjust the tolerances accordingly.

  1. banner.text

Options

In this section, you can specify whether so-called "representatives" for members and member sets are used in the model. Activating the 'Member representatives' and 'Member set representatives' check boxes adds the corresponding tabs in the dialog box. They are described in the chapters Member Representatives and Member Set Representatives.

The list 'Activate rule-based coupling generator' provides the possibility to use a generator for coupling unconnected model objects. This function is described in the chapter Rule-Based Coupling Generator. Using the New button, you can create a new generator; using the Edit button, you can edit the entry selected in the list.

Global Axes XYZ

This section controls the orientation of the global Z-axis. In CAD applications, the Z-axis usually points upwards, in structural analysis programs downwards. This has no effect on the calculation.

If Z is oriented upwards, the factor -1.0 in Z is automatically applied for the 'Active self-weight' function in the load case (see chapter Load Cases ).

Local Axes xyz

The standards define the designations of the member axes differently. Here, you can specify how the member principal axes z or y and the surface axis z are oriented in order to adapt the local axis systems to the regional conventions.

The position of the local member axes is illustrated in the graphic of this section.

Position of Shear Center

Using the two selection fields, you can control the influence of the shear center in the calculation with six degrees of freedom. In the predecessor versions, the position of the shear center 'At center of gravity' was implicitly assumed, so that no intentional torsion could arise due to the cross-section geometry. The 'Outside of center of gravity' option now offers the possibility to realistically represent the torsional behavior of unsymmetrical cross-sections.

  1. banner.text

Costs / CO2 Emission Estimation

The determination of the costs and CO2 emissions of a model is based on the member elements of the model. For this purpose, a method is used that is also applied in practice for calculating the total costs of a building. The model is divided into units such as columns, beams, or downstand beams. For these units, specific unit costs are developed that cover all costs to be recorded (price per surface, price per length, price per weight). The masses of the individual units (weight, solid, surface) are then multiplied by the associated unit costs. In this way, the partial costs for each unit are obtained. The sum of all partial costs results in the total costs of the model. The estimation of the CO2 emissions is based on the same approach.

Define the currency symbol of the costs. You can then define the costs per unit in the Materials and, if applicable, also for the Cross-Sections.

The adjustment factors allow you to scale the costs and CO2 emissions of the model globally. This can be helpful for cost adjustments in the course of the project.
