Automatically

With the 'Renumber | Automatically' function you can change the numbers of several model objects in one step.

Important

Specify the relevant objects by using one of the Selection Options before calling the function.

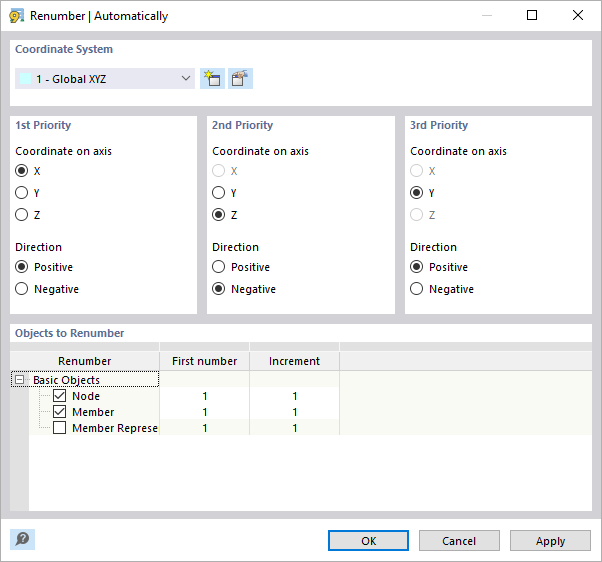

Specify the 'Coordinate System' whose axes are to be used for renumbering. You can select a User-Defined Coordinate System from the list or create a new one using the New button.

Then, specify the 'Priority' of the axis directions X, Y, and Z (or U, V, and W) for the new numbering. You can control whether the ascending numbering is to be applied in the direction of the positive or negative axis.

In the example above, the nodes (as well as the members) with the smallest X-coordinates receive new numbers first. The nodes are renumbered in the positive direction X. If two nodes have identical X-coordinates, the 2nd priority decides which node is given the lower number: It will be the node with the larger Z-coordinate value. If the Z-coordinates are also identical, the third priority turns the balance.

In the 'Objects to Renumber' dialog section, specify whether nodes, members, or representatives are to be renumbered and which starting numbers and increments (interval between numbers) apply. Only basic objects can be automatically renumbered. Types of objects or special objects can be renumbered with the Individually function.

Info

Only free numbers are allowed to be used for renumbering. However, RSTAB allows the use of allocated numbers if they become available due to the renumbering.
