Models

The Models category in the Dlubal Center provides an overview of your projects and model files.

Organizing Models in Dlubal Center

In structural analyses, a project is often subdivided into several positions. In RSTAB, these positions are referred to as "Models". The Project Navigator helps you to manage the projects and models of your Dlubal applications.

Project Navigator for Project Management

Your projects are listed in the navigator on the left. When clicking a project in this directory tree, you can see the models of this project shown to the right.

Current Project

The current project is listed in bold and with a blue arrow by the folder icon in the menu. To set another project as the current one (for example, for saving new models automatically in that project), right-click the project. Then, select the Set as current option in the shortcut menu.

Opening Shortcut Menu of Project

Project Properties

You can select the Properties option in the shortcut menu to change the description of a project and check the directory path.

Editing Project Properties

The Open file location entry in the shortcut menu opens the Windows Explorer. There you can see all the files that are in the selected project folder.

Create New Project

In the navigator, right-click the project in which you want to create the new project. If you want the new project to be listed as the main entry in the navigator, right-click the parent entry 'Projects'. In the Shortcut Menu of the project, select the Create new project option to open the dialog box of the same name.

Creating New Project

Enter the title of the project as the 'Project Name'. The 'Description' of the project is optional. It is a short description that also appears in the printout report (see image Model Description in Printout Report ) but has no further relevance.

Define the directory of the project folder in the 'Create new folder in' field. You can use the button to select the file folder in the Explorer. If you want to create a new folder for the project, add the name to the directory path. After clicking OK, confirm the corresponding query in the 'Create Folder' dialog box.

Creating New Project Folder

Add Existing Project

You can use this function to integrate a folder with its model files into the project management of the Dlubal Center. In the navigator, right-click the project under which you want to manage the folder. If you want the folder to be listed as the main entry, right-click the parent entry 'Projects'. In the Shortcut Menu of the project, select the option Add existing project. Next, specify the relevant folder in the Windows dialog 'Select directory' and click 'Select folder'.

Adding Existing Project

The 'Project Name' is taken from the folder name. You can change it if you wish. The 'Include subfolders as subprojects' option allows you to integrate all folders within this project folder into the project management.

Rename Project

Right-click the project in the navigator. In the Shortcut Menu of the project, select the Rename option. Enter the new project name in the 'Rename Item' dialog box.

Disconnect Project

With this function, you can remove a folder from the project management in the Dlubal Center without deleting it. Right-click the folder. In the Shortcut Menu of the project, select the option Disconnect Project.

Delete Project

Right-click the project. In the Shortcut Menu of the project, select the option Delete Project. This deletes the folder on the hard disk along with its contents. If the folder also contains files from other programs, only the RSTAB and RFEM files are removed and the folder is retained.

Create New Model

You can create a new model not only in the RSTAB user interface, but also in the Dlubal Center. Use the list in the New section for this.

Creating New Model

Click the RSTAB model entry to open the 'New Model - Base Data' dialog box (see the image New Model - Base Data ). In that dialog box, you can enter the model name and define the basic parameters of the model.

Filter

You can use the in the bar above the model overview (see image Manage Models in Dlubal Center) to show and hide the filter function. Alternatively, use the or buttons in the Project Navigator.

You can filter the models according to various criteria.

Models of Selected Project

All RSTAB models of the project selected in the Project Navigator are displayed in the middle of the Dlubal Center. They are listed with the model names in a preview.

You can adjust the display size with the slider in the bottom right corner. With the and buttons, you can control whether the models are displayed as icons or in a list.

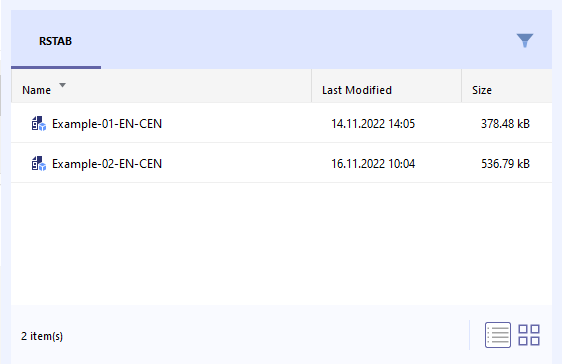

Models in List View with Model Shortcut Menu

You can use the button to specify which columns you want in the list view.

Adjusting Columns for List View

Details of Selected Model

In the Dlubal Center section on the right, you can see the preview of the selected model, including important model and file information. The names of the people who created and last edited the model are also listed there.
