The results of the finite element analysis are output at the grid points (in preparation) of the parts and at the FE mesh nodes (see chapter Result values on parts). If you need the values at specific locations, you can define any points for the result display and assign them to the corresponding parts.
Tip
With the button
in the toolbar, you can place result points directly on the model.
Coordinates

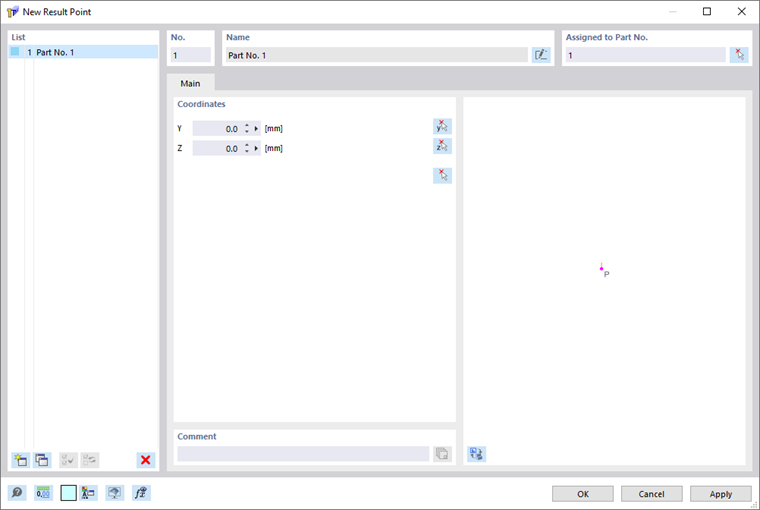

Specify the 'Coordinates' of the result point. With the button
, you can also define the point graphically.

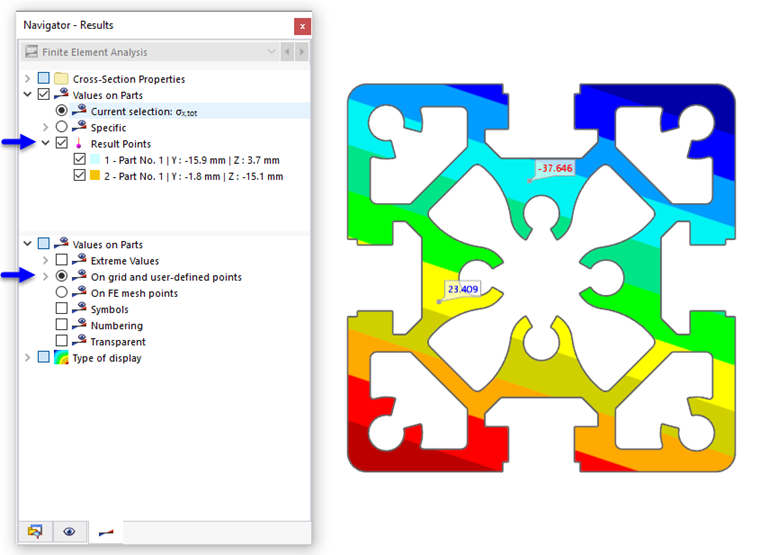

After the calculation, you can display the values in the user-defined result points with the corresponding options of the 'Navigator - Results'.
