Generate Surfaces from Cells

The Generate Surfaces from Cells function allows you to fill closed areas of the model, known as "cells", with surfaces. A cell consists of at least three corner nodes. It is enclosed on all sides by straight lines and lies in a plane. The cell is not recognized for curved lines.

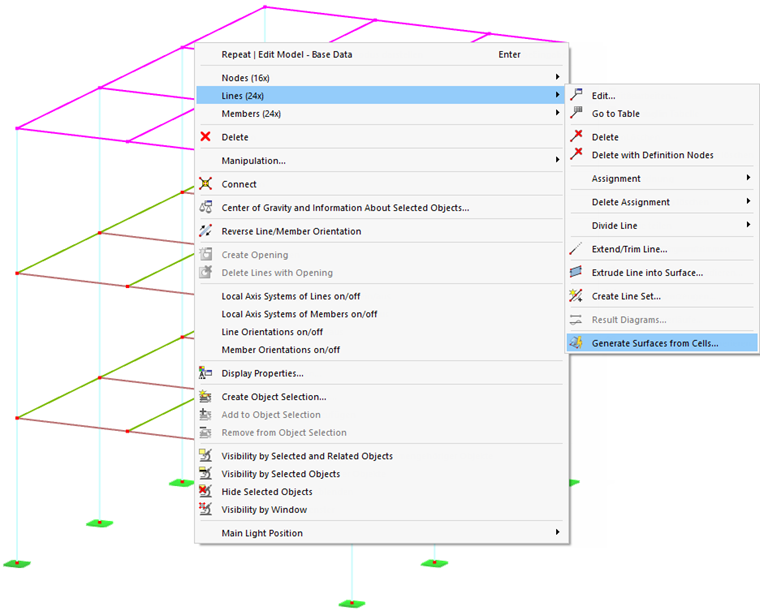

Select the lines including their nodes by drawing a window over the relevant area. Then right-click on one of the selected lines to open the shortcut menu. Select LinesGenerate Surfaces from Cells.

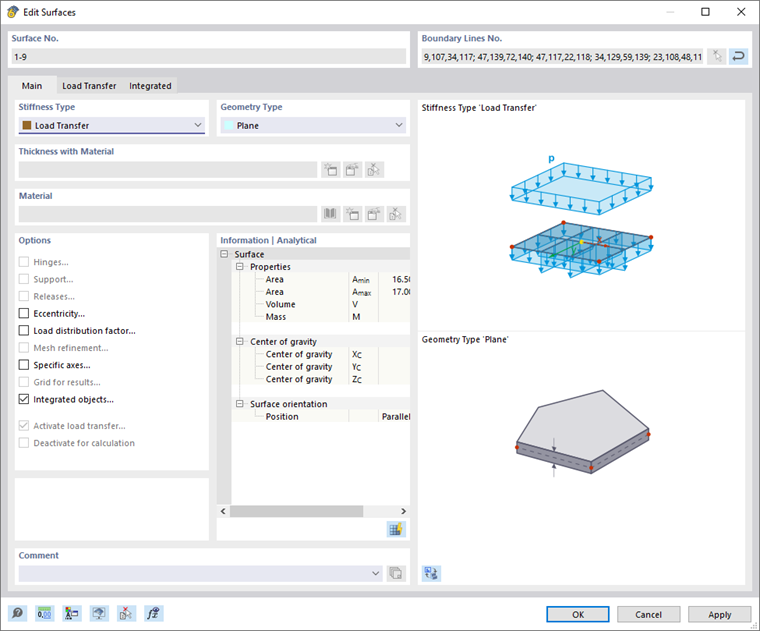

If the cells are recognized, the 'Edit Surfaces' dialog box opens. Define the surface properties.

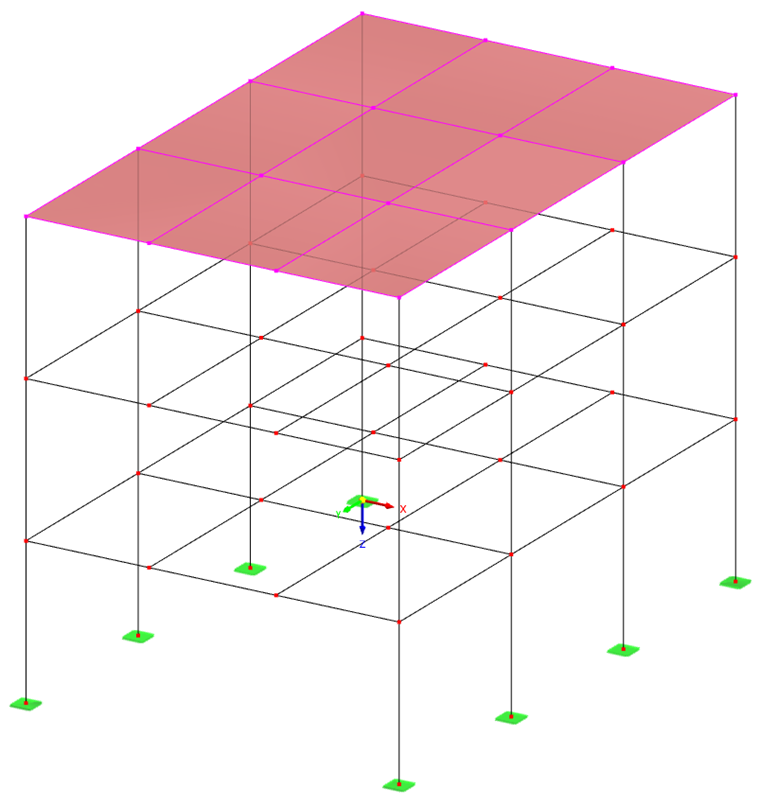

The surfaces are created after confirming by clicking OK.
