Result Values on Surfaces

The button shows or hides the result values of members. Special functions are available for the results of surfaces, which allow for a targeted evaluation.

Displaying result values

In the 'Navigator - Results', you can control whether result values are displayed on surfaces, and which results are displayed in detail. Use the Values on Surfaces entries available in both navigator sections.

Displaying Values on Surfaces

With the 'Values on Surfaces' category in the upper section, you can switch the display of result values on and off. Here, you also define the result type(s) whose values are displayed.

The 'Values on Surfaces' category in the lower section manages some settings by which you can influence the output and display of result values.

Result category for values

In the upper navigator section, you define the result category to be used for the value display.

Current Selection

Displaying Values of Current Result Category

The 'Current Selection' setting is aligned with the graphical results: In the image above, these are the basic internal moments m_y. This way, the result values of the current deformation, internal force, or stress graphic are displayed.

Groups

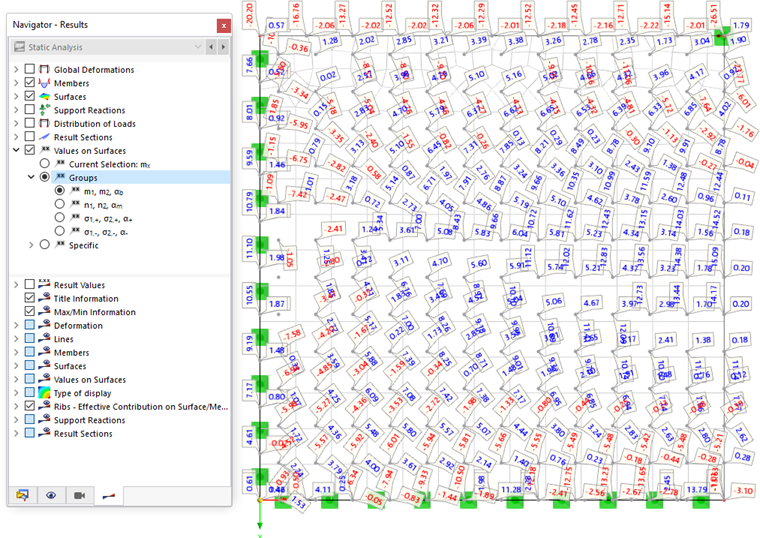

Displaying Group of Principal Moments

The 'Groups' setting allows you to display two result values at each result point. Four groups of internal forces and moments, as well as stresses, are available. The image above shows the group of the principal moments m₁ and m₂. The arranged grid values are rotated about the angle α_b.

Specific

Displaying Values of Principal Stresses for Positive and Negative Surface Side

With the options of the 'Specific' setting, you can individually define which result values are displayed: deformations, internal forces and moments, stresses, strains. The image above shows the values of the principal stresses that are available on the positive and negative sides of the surface, respectively.

Settings for Result Values

In the lower navigator section, you can define the points at which the result values are displayed and in which form they appear.

Displaying Extreme Values of Surface Moments with Symbols

Extreme Values

With the 'Extreme Values' check box you can control whether only the extreme values of results are displayed. Depending on the setting, the respective minimum or maximum values of the model, surfaces, or solids appear. The image above shows the minimum and maximum principal moments m₁ available in each surface.

On grid and user-defined points / On FE mesh points

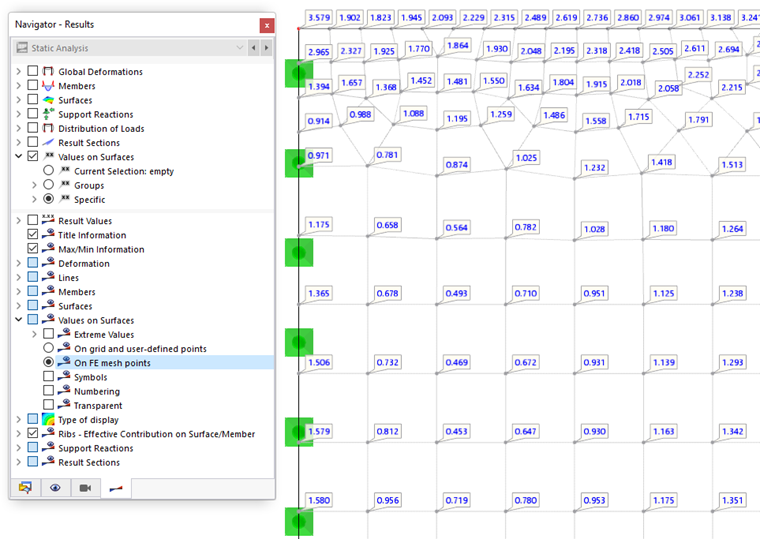

Displaying Result Values on FE Mesh Points

The result values are either displayed in the grid points and user-defined Result Points or in the FE mesh points. The image above shows the maximum equivalent stresses σ_v that are available on the nodes of the mesh.

You can change the settings for the result grid of a surface in the Edit Surface dialog box. The user-defined result points, however, are managed by the Types for Surfaces. You can also use the button to set result points directly.

Symbols / Numbering / Transparent

The last three "Values on Surfaces" check boxes in the lower navigator section control how the values are displayed.

• Symbols: The result type (u, m₁, σ_z) is specified additionally.
• Numbering: The number of the R grid point or the N FE mesh point is displayed.
• Transparent: The values are displayed without a frame or background.

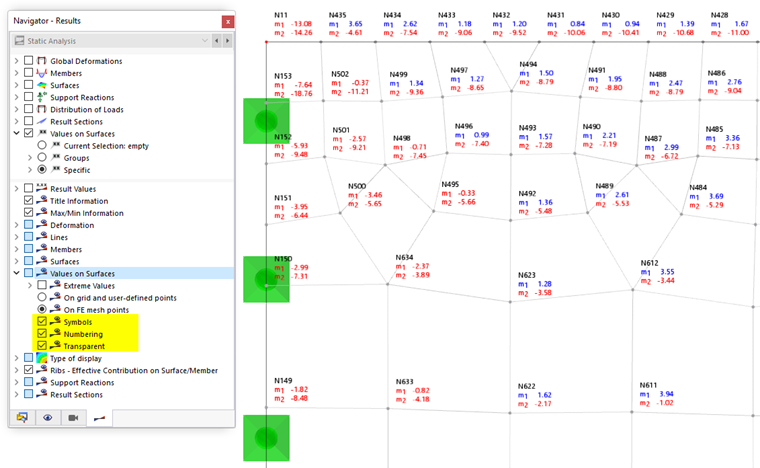

The following image shows the principal moments, including numbering of FE nodes, in a transparent representation.

Displaying Principal Moments with Symbols and Numbering

Adjusting color and font of result values

To adjust the colors and font of result values, click Display Properties on the Options menu. In the 'Display Properties' dialog box, open the Results category. Select Values on Surfaces.

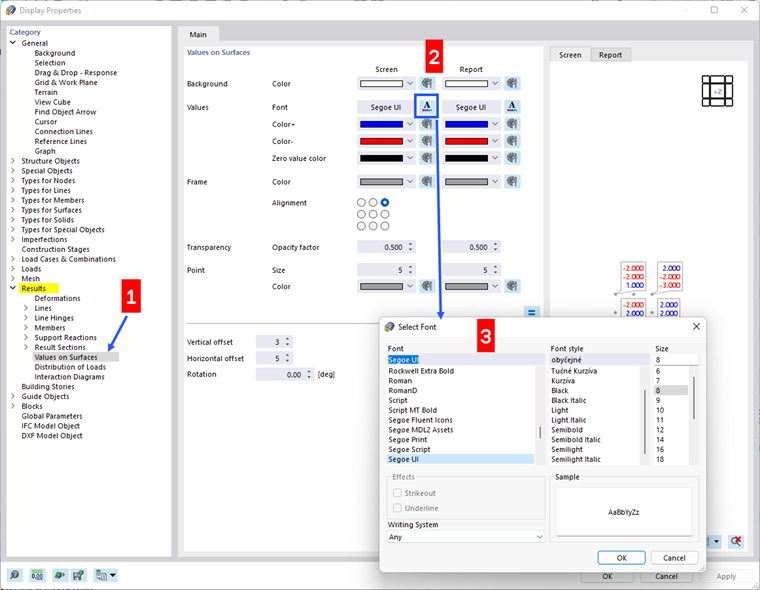

Adjusting Font and Display of Result Values

In the 'Values on Surfaces' dialog section, you can adjust the color of the background as well as the frame, font, arrangement, and transparency. The changes are shown in the preview on the right.

Separate specifications for 'Screen' and 'Report' are possible. When the button is activated, the changes are synchronized for both output types.

Filtering result values

There are filter options for the result values, which you can use to display particular results. On the 'Results' menu, select the Result Value Filter item to open the 'Result Value Filter' dialog box.

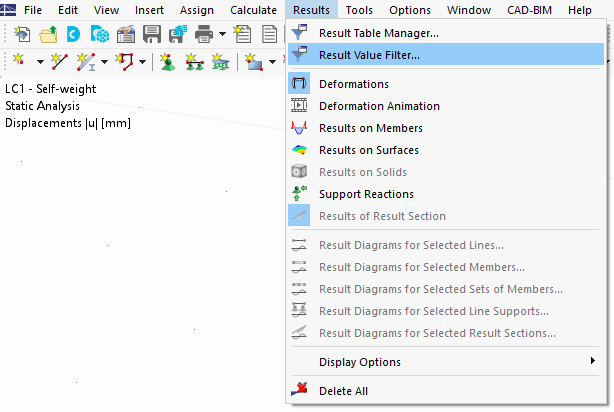

Calling Up Result Value Filter

In this filter, you can define the criteria for displaying result values.

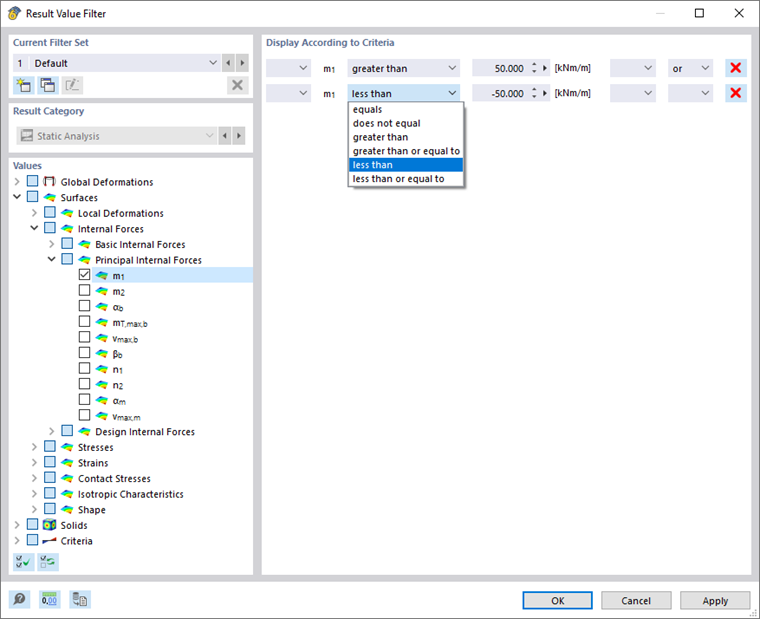

Defining Filter Criteria for Result Values

Current Filter Set

The dialog section on the top left allows for saving the filter settings. All results without restrictions are preset as 'Default'.

To save specific settings for the result values, click the button. Enter a description in the 'New Filter Set' dialog box.

Dialog Box "New Filter Set"

After clicking OK, you can specify the settings for the new filter set. They are then available for evaluation in the 'Current Filter Set' list.

Values

Use the check boxes in the directory tree to define the result types for which you want to define the criteria. If you select the check box, you can specify the conditions for this result type in the "Display According to Criteria" dialog box section.

Display According to Criteria

In this dialog section, you can define the conditions that apply to the result values of the selected result type. In the second column, select the comparison to be applied. In the third column, enter the governing value.

To define another criterion, select the 'or'-entry (each criterion counts for itself) or 'and' (each criterion must be fulfilled) in the last column. Then, define the next condition in the new line.

The Defining Filter Criteria for Result Values image shows the criteria for the surface principal moments. With these settings, all values of the moments m₁ that are between ±50 kNm are hidden.

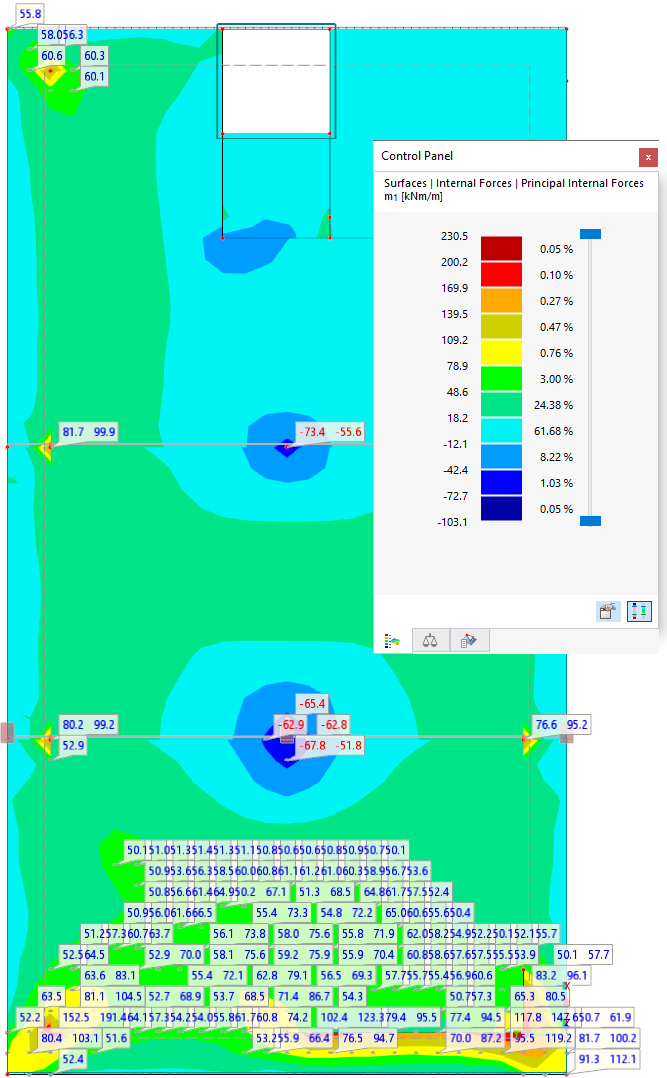

Result Values with Filter Criteria
