The surface and solid results are output at the grid points of the surfaces and at the FE mesh nodes (see the chapter Result Values on Surfaces). If you need the values at specific locations, you can define any points for the result display and assign them to the corresponding surfaces or solids (in preparation).

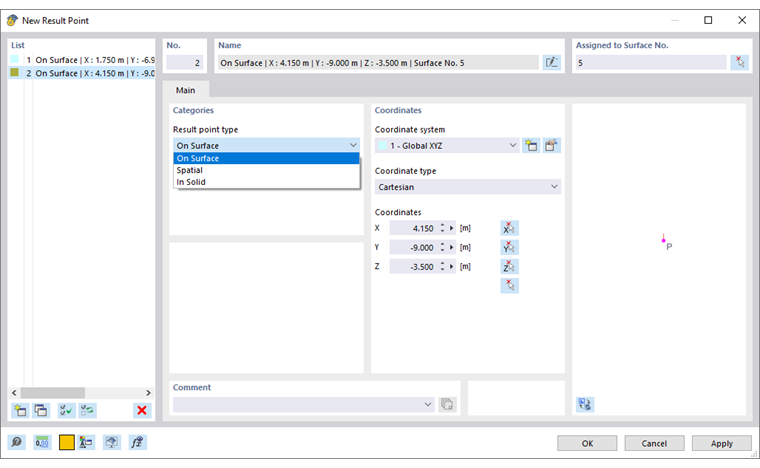

You can set result points directly on the model using the
button in the toolbar.
Categories
In the list, select for which object you need the result point:
- On Surface: for surface results
- Spatial: for results of a wind simulation with RWIND
- In Solid: for solid results (in preparation)
Coordinates
Set the "Coordinate system" whose axes are to be used for the result points. You can select a user-defined coordinate system from the list or create a new one with the
button.
Then specify the "Coordinates" of the result point. You can also define the point graphically using the
button.

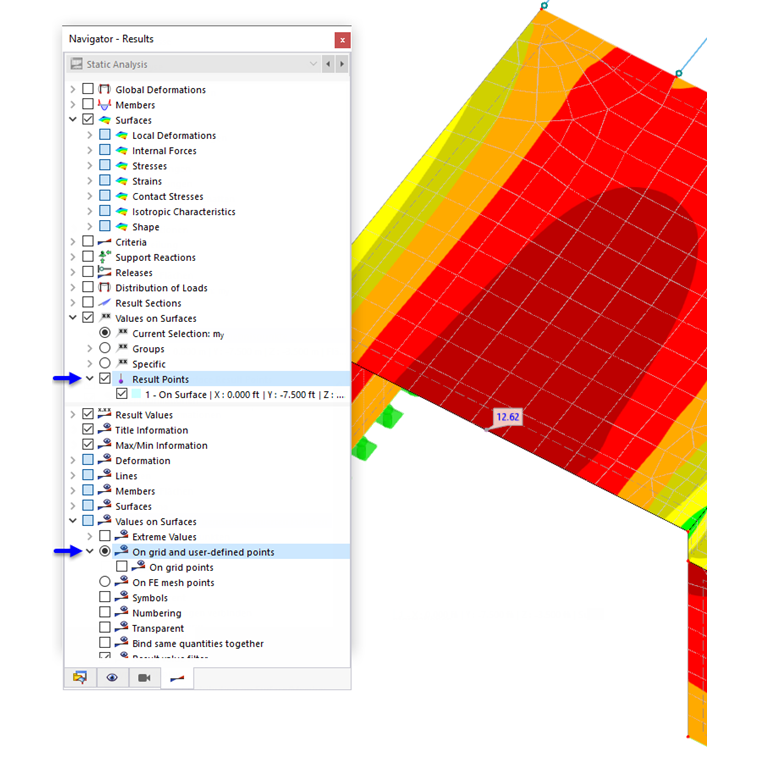

After the calculation, you can display the values in the user-defined result points using the corresponding options in the "Navigator – Results".
