Modeling Tools

The modeling tools presented in the following text allow you to graphically edit model or load objects. First, select the objects using one of the options described in the Selection Options chapter.

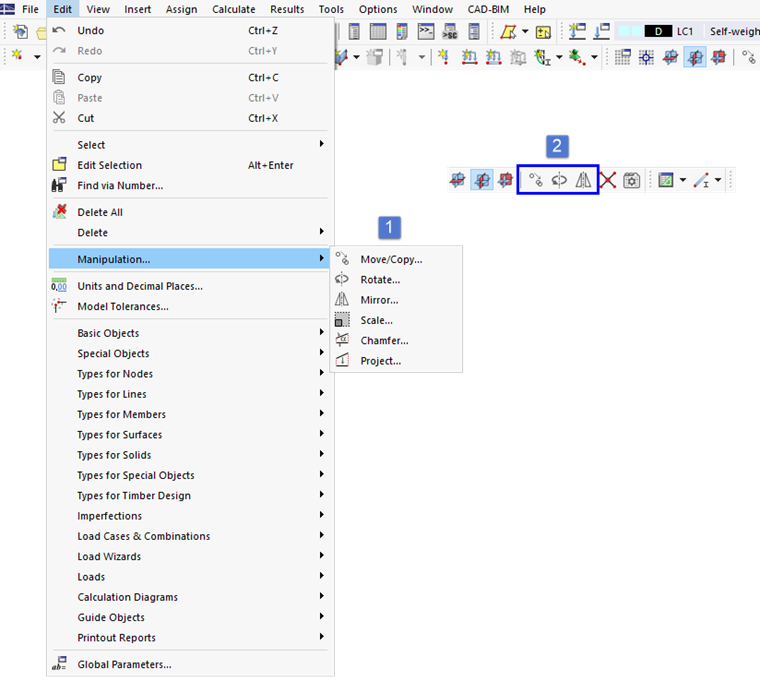

Some modeling tools are available on the Edit menu by selecting the "Manipulation" entry (1). Buttons for the most important functions are also available in the toolbar (2).

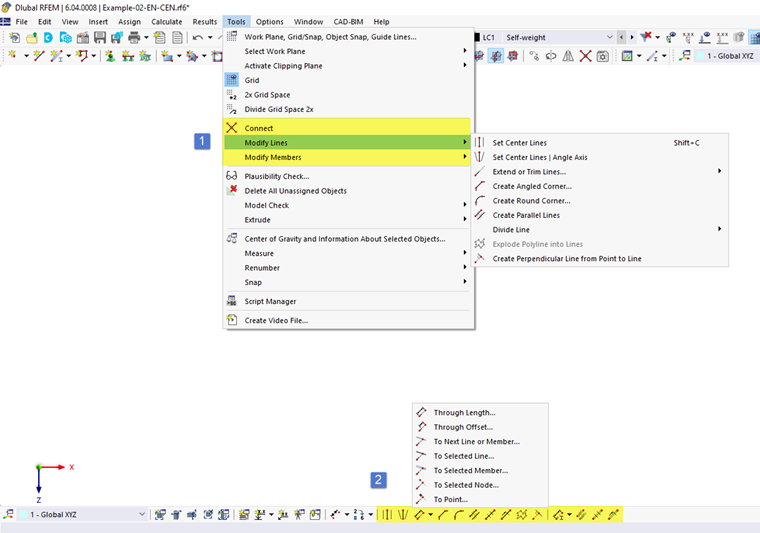

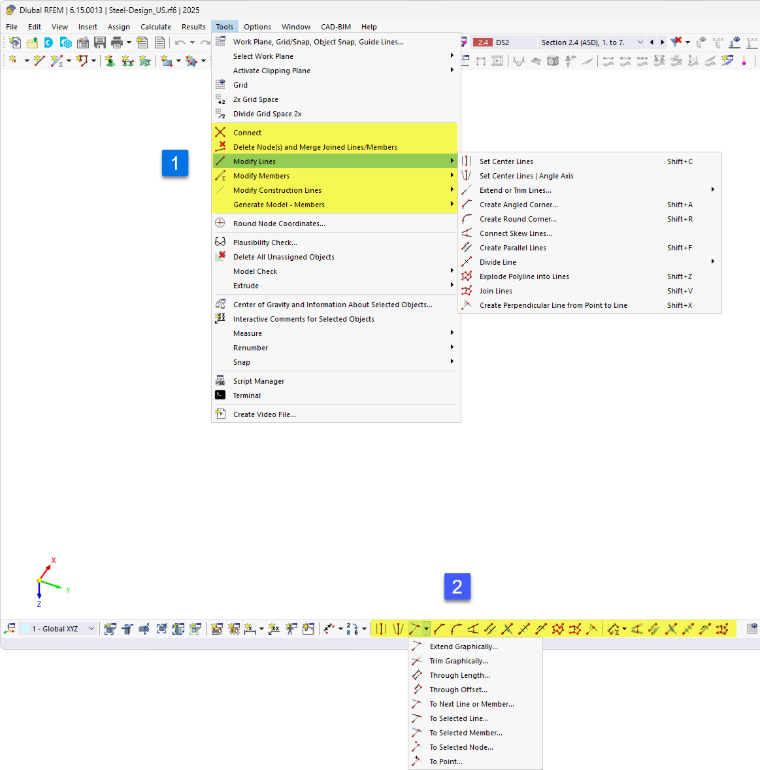

You can access additional modeling functions on the Tools menu (1) or with the buttons in the CAD toolbar (2).
