Member Imperfections

Member imperfections offer the possibility to display effects of imperfections by means of equivalent pre-deformations in the form of inclinations and precambers of members. They are taken into account in the calculation by equivalent loads.

Categories

Member imperfections can be modeled in different ways. The settings in the "Categories" dialog section control the entries to be made in the "Parameters" dialog section.

Imperfection type

Select the type of imperfection from the list.

An inclination is represented by an "Initial Sway"; an "Initial Bow" represents the magnitude of an initial deflection of the member. The "Initial Bow and Criterion" option allows for defining a precamber depending on the inclination. Depending on the selection and Definition type, you can define the values of inclinations or precambers in the "Parameters" dialog section.

Info

If you want to apply both an initial sway and bow to a member, define two member imperfections with the respective parameters. Then, assign both imperfections to the member.

An initial bow is represented by a normal force distribution at the FE nodes on the member.

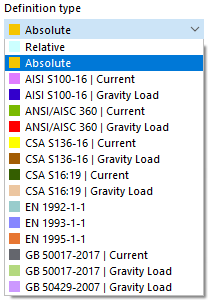

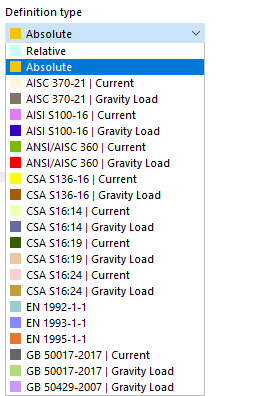

Definition type

The list offers various options to apply the imperfection by user-defined setting or according to standard specifications.

Depending on the selection, you can define the values for inclinations or precambers in the "Parameters" dialog section by means of relative (related to the member length) or absolute values, or standard-specific parameters. That dialogue section adapts dynamically to the definition and imperfection types. The types and parameters are illustrated in the dialogue graphic.

Coordinate system

You can relate the direction of the imperfection to the following coordinate systems of the member cross-section:

  • Local xyz: input axes of cross-section that correspond to principal axes for symmetrical cross-sections
  • Principal xuv: principal axes of cross-section

Info

You can display the axis systems in the "Navigator - Display" under ModelBasic ObjectsMembers.

Imperfections do not act "conservatively": In the process of calculation, the imperfection is adjusted to the direction of the member deformation.

Imperfection direction

In the list, choose the axis direction in which the imperfection acts.

You can display and hide the member axes using the member shortcut menu.

Parameters

In this dialogue section, you can define the values for inclinations and precambers. The input fields correspond to the imperfection type and the Definition type. The New Member Imperfection image shows the general parameters for the relative input of an inclination.

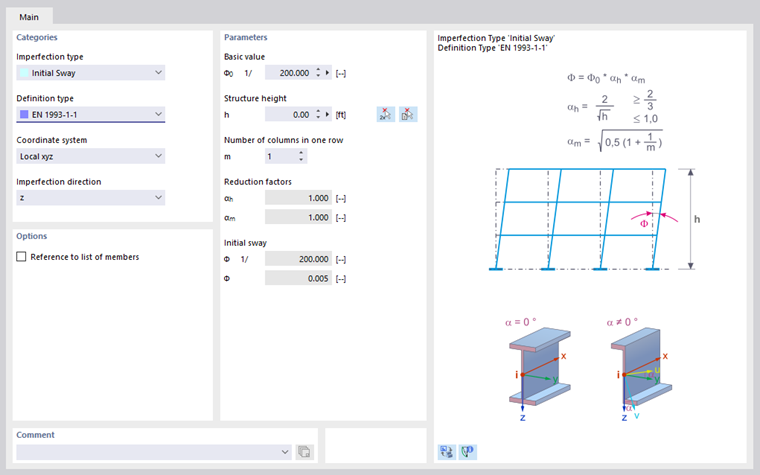

When setting the EN 1993-1-1 definition type, the parameters shown in the following image must be specified.

Based on the entered values, reduction factors and initial sways are calculated in accordance with standards.

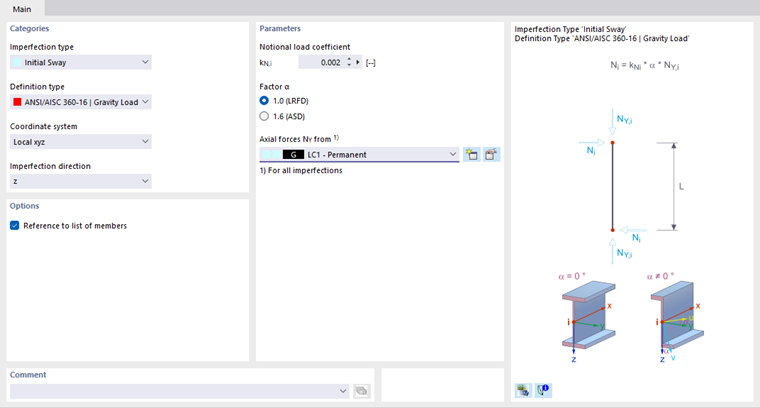

If you have specified the ANSI/AISC 360-16 | Gravity Load definition type, the parameters are as shown in the following image.

If you have defined the Initial Bow and Criterion imperfection type, you can select the "Activity criterion" from a list.

The initial bow can always become effective, or from a certain slenderness ratio according to the standard, or from a user-defined member coefficient.

Options

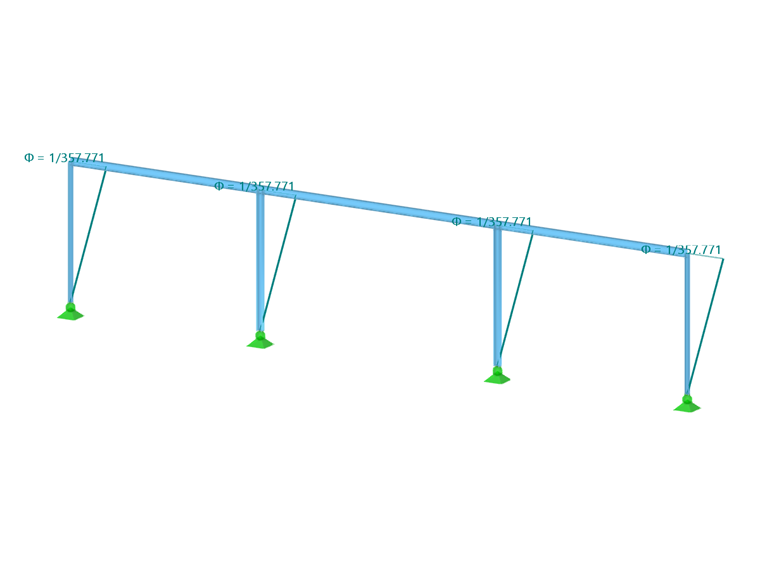

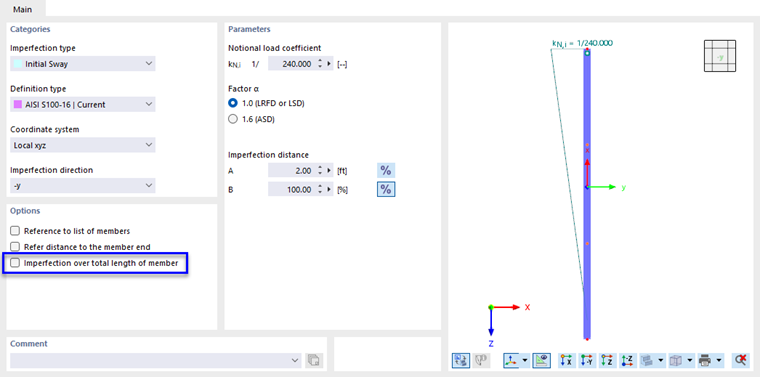

The "Reference to list of members" check box controls whether the imperfection acts separately on each member, or as a whole on all members to which you assign the imperfection. The approaches are compared in the following image.

Tip

With a "list of members", you can apply the imperfection over all members without defining a continuous member.
