The Emissions table category contains one or more result tables with an assemblage of the CO2 emissions expected for the model.

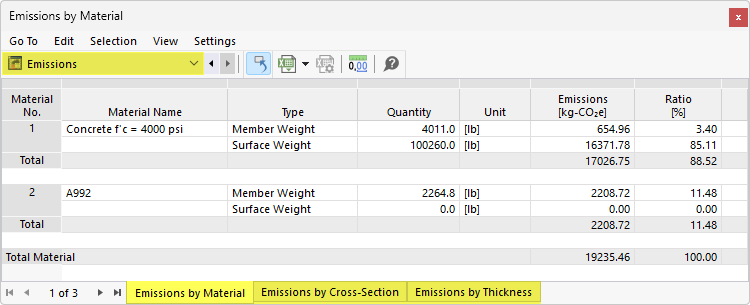

Emissions by Material
The Emissions by Material table presents the emissions broken down by the materials of the objects. The materials are listed with their respective emissions. This allows a quick analysis of the CO2 emissions for calculations.
The table is based on the specifications defined for the estimation of CO2 emissions of the individual materials.
The 'Quantity' column indicates the number of existing units. The proportional emissions result from the respective unit emissions. The 'Ratio' column shows the share of the emissions that a material has in the total emissions of all materials for the objects (members, surfaces, solids).
The last row of a material indicates which emissions the material causes in 'Total'. The table ends with the sum of the CO2 emissions for the 'total material', that is, the total emissions of all materials.
Emissions by Cross-Section / Thickness
For all cross-sections and thicknesses for which you have activated the estimation of CO2 emissions, you can evaluate the proportional emissions in further tables.
In the Emissions by Cross-Section table, the CO2 emissions are broken down in an ordered way by cross-sections. The emissions result from the respective unit emissions and quantities. The 'Ratio' column shows the share of the emissions that a cross-section has in the total emissions of all cross-sections. The table ends with the sum of the emissions for the 'total cross-section', that is, the emissions of all cross-sections.
Analogously, the Emissions by Thickness table lists the CO2 emissions for each thickness type.
Printout
The estimation of CO2 emissions can – like the other RFEM categories – be included in the printout report and used for documentation. To do this, activate the Emissions category in the Printout Report Manager.
In the print preview of the printout report, you can check the data, arrange it as required, and supplement it with explanations.
