Construction Lines

Construction lines allow you to create lines and assign them to layers, as in a CAD program. These lines make it easier to model model objects.

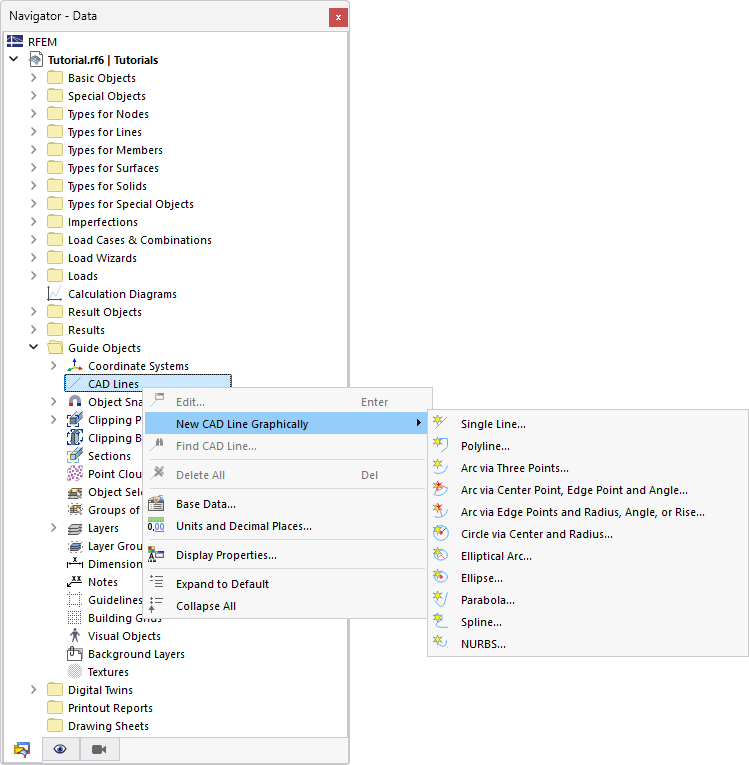

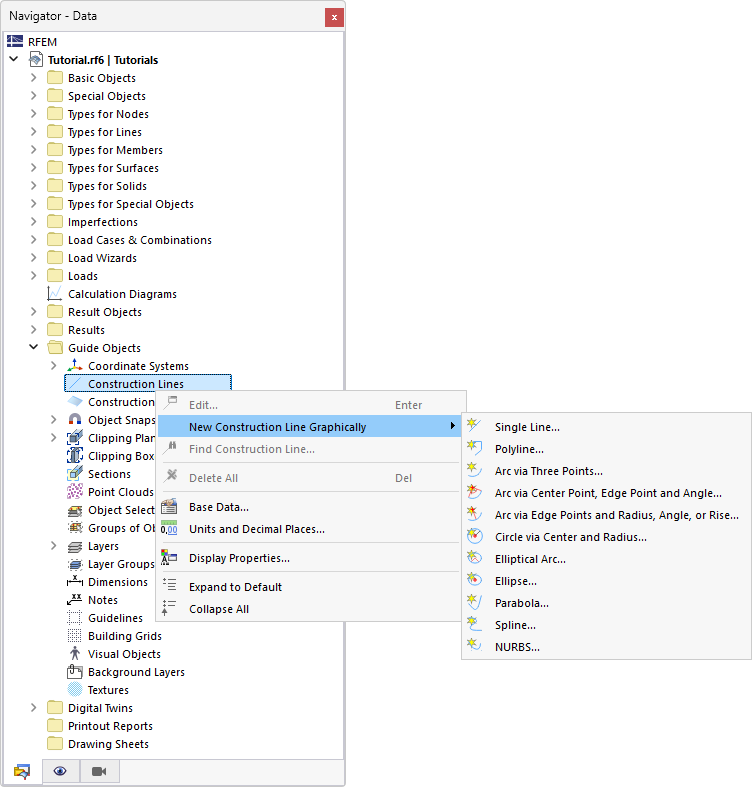

Various types of construction lines are available for selection in the Navigator context menu.

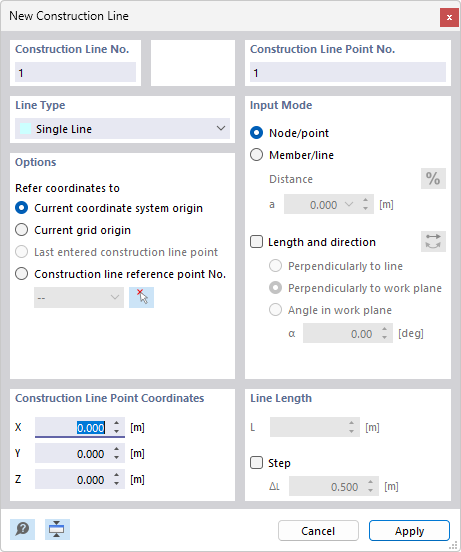

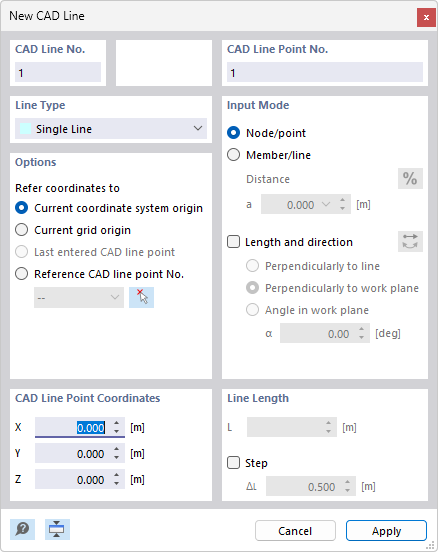

Alternatively, use the New CAD line button in the toolbar (top right next to the layer buttons) to open the 'New Construction Line' dialog box.

You can define construction lines in the same way as the corresponding "real" lines of the model.

Info

The parameters of the individual line types (polyline, arc, circle, etc.) are described in the chapter Lines.

Changing a Line into a Construction Line

You can also create a construction line from an existing line. Proceed as follows:

  1. Select the line.
  2. In the Tools menu → Modify Lines, call up the Convert into Construction Line function. Alternatively, click the Convert Line into Construction Line button in the CAD toolbar (see image Modeling Tools ).

As a result, the line loses its property as a structural object for defining members and surfaces.

Construction Lines in Layers =

Construction lines can be assigned to a layer and managed in the layer manager. This allows you to use the construction lines specifically for graphical modeling.

Tip

You can create a new layer with the Layer Manager.

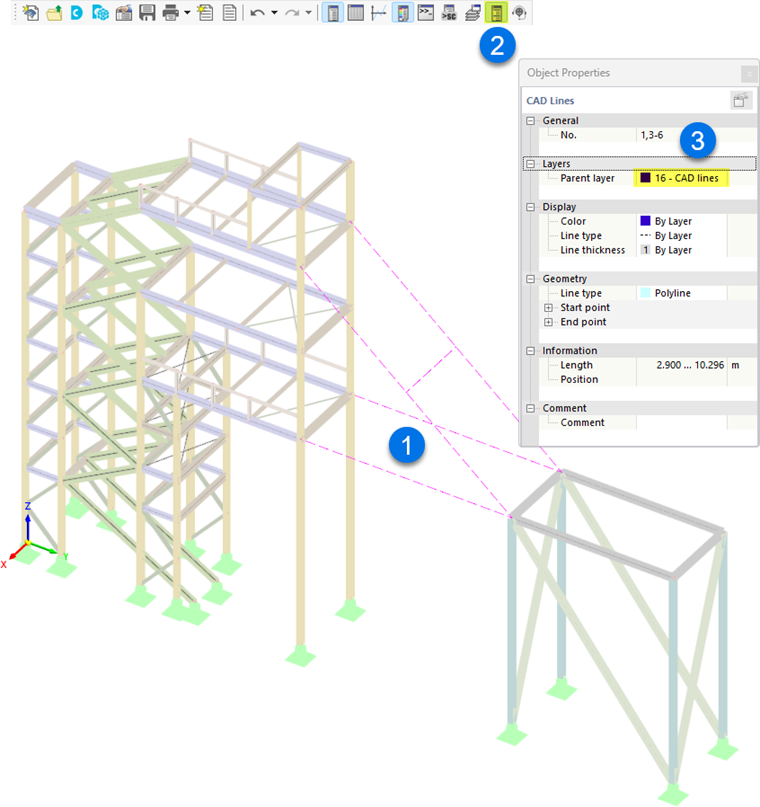

To assign a construction line to a layer, proceed as follows:

  1. Select the construction line.
  2. Activate the 'Object Properties' panel using the Panel object properties button in the toolbar. Alternatively, double-click the construction line.
  3. In the list of the 'Layers' panel category, select the appropriate entry.
